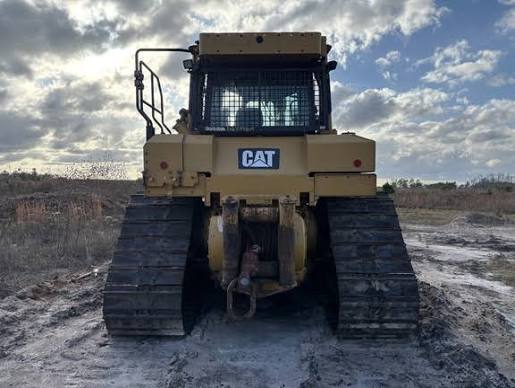

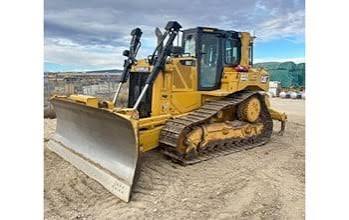

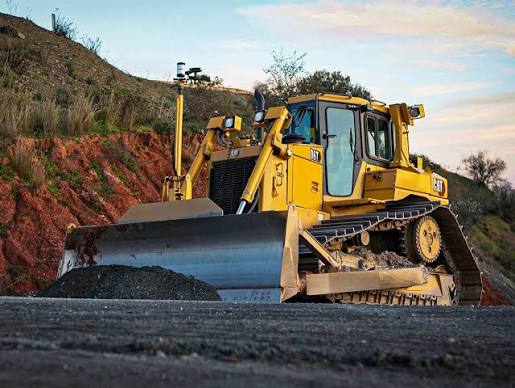

D6T

Specifications

90 data points

Operating Specifications specifications
Operating Weight	40,550 lb

Dimensions specifications
Length - Track on Ground	113 in
Drawbar Height (Center of Clevis) from Ground Face of Shoes	23 in

Undercarriage specifications
Ground Pressure	9 psi
Grouser Height	3 in

Standards specifications
Brakes	Brakes meet criterion SAE J/ISO 10265 MAR99

Ripper specifications
Ripper Type	Fixed Parallelogram
Number of Pockets	3
Overall Beam Width	87 in
Maximum Clearance Raised - Under Tip, Pinned in Bottom Hole	20 in
Maximum Penetration	20 in
Beam Cross Section	216 254 mm 8.5 10 in
Weight - Each Additional Shank	163 lb
Pry-Out Force	20,137 lb
Maximum Penetration Force	14,557 lb
Weight - With One Shank	3,606 lb

Winch specifications
Drum Diameter	10 in
Drum Width	13 in
Weight	2,600 lb
Flange Diameter	20 in
Oil Capacity	17.8 gal
Winch and Bracket Length	48 in
Winch Case - Width	38 in
Increased Tractor Length - STD	20 in
Drum Capacity - 22 mm (0.88 in)	3,480 in
Drum Capacity - 29 mm (1.13 in)	2,640 in
Ferrule Size (O.D. Length)	54 67 mm 2.10 2.63 in
Increased Tractor Length - LGP	16 in
Drum Capacity - 25 mm (1.0 in)	2,640 in
Increased Tractor Length - XL/XW	20 in

Hydraulic Controls - Pump specifications
Ripper Cylinder Flow	49.9 gal/min
Tilt Cylinder Flow	21.1 gal/min

STD Option specifications
Net Power	185.0 hp
Gross Power	213.0 hp
Operating Weight	41,298 lb
Max Speed - Forward	7.2 mph
Max Speed - Reverse	9.1 mph
Displacement	537 in³
Capacity	5.21 yd³
Cooling System Fluid Capacity	18.5 gal
Engine Model	C9 ACERT
Engine Oil Capacity	7.4 gal
Final Drives Fluid Capacity	3.6 gal
Fuel Capacity	112.0 gal
Ground Clearance	16 in
Ground Contact Area	4,620 in³
Ground Pressure	9 psi
Height	45 in
Height - Top of Cab	126 in
Hydraulic Fluid Capacity	13.6 gal
Length of Track on Ground	106 in
Length w/o Blade	152 in
Number of Cylinders	6
Number of Forward Gears	3
Number of Reverse Gears	3
Number of Shoes per Side	39
Number of Track Rollers per Side	6
Power Measured @	1,850 rpm
Pump Flow Capacity	49.9 gal/min
Relief Valve Pressure	2,799 psi
Standard Shoe Size	22 in
Track Pitch	8 in
Transmission Type	Powershift
Width	165 in
Width Over Tracks	96 in
