Caterpillar

D7R LGP II WH

Crawler Dozer

Operating Weight
61,500 lb
Max Speed - Forward
6.6 mph
Gross Power
258.0 hp
Net Power
240.0 hp
All crawler dozers

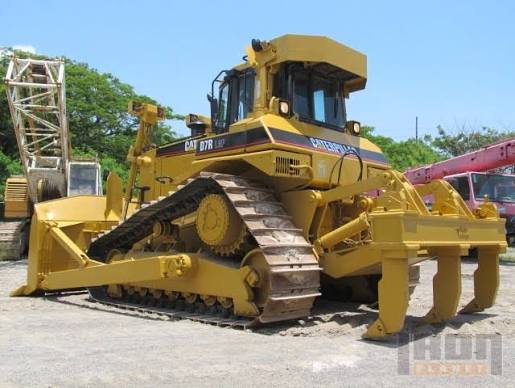

Caterpillar D7R LGP II WH Crawler Dozer
1 / 5
Image 1 of 5
Image: machinerytrader.com

Specifications

27 data points

Operating Specifications

Operating Specifications specifications
Operating Weight61,500 lb
Fuel Capacity126.5 gal
Operating Voltage24 V
Alternator Supplied Amperage95 A

Engine

Engine specifications
Engine Model3176C
Displacement629 in³
Power Measured @2,100 rpm
Gross Power258.0 hp
Net Power240.0 hp
Number of Cylinders6

Dimensions

Dimensions specifications
Ground Clearance20 in
Height - Top of Cab142 in
Length of Track on Ground126 in
Width Over Tracks101 in
Length w/ Blade247 in
Length w/o Blade186 in

Transmission

Transmission specifications
Max Speed - Forward6.6 mph
Max Speed - Reverse8.4 mph
Number of Forward Gears3
Number of Reverse Gears3

Undercarriage

Undercarriage specifications
Ground Pressure7 psi
Track Gauge89 in
Number of Track Rollers per Side7
Number of Shoes per Side43
Standard Shoe Size36 in
Ground Contact Area8,974 in³

Standard Blade

Standard Blade specifications
Capacity16.10 yd³
