Caterpillar

D9T WH

Crawler Dozer

Operating Weight
109,180 lb
Gross Power
464.0 hp
Net Power
410.0 hp
All crawler dozers

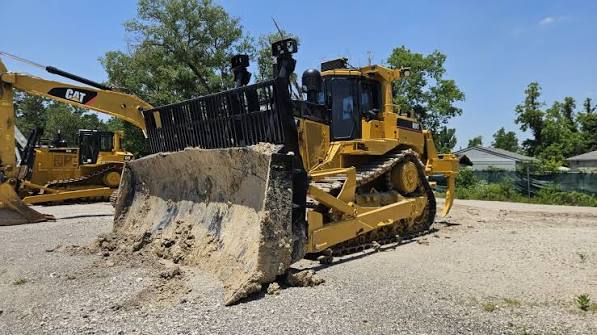

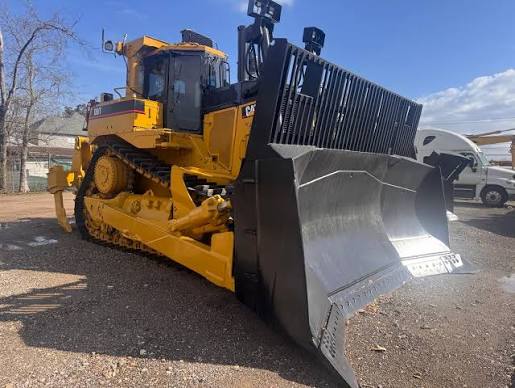

Caterpillar D9T WH Crawler Dozer
1 / 5
Image 1 of 5
Image: lectura-specs.com

Specifications

38 data points

Operating Specifications

Operating Specifications specifications
Operating Weight109,180 lb
Fuel Capacity235.0 gal
Operating Voltage24 V
Alternator Supplied Amperage95 A

Engine

Engine specifications
Engine ModelCat C18 ACERT
Displacement1,105 in³
Power Measured @1,800 rpm
Gross Power464.0 hp
Net Power410.0 hp
Number of Cylinders8
MakeCat
Stroke7 in
Bore6 in
Flywheel Power410.0 hp

Dimensions

Dimensions specifications
Ground Clearance24 in
Height - Top of Cab151 in
Length of Track on Ground137 in
Width Over Tracks113 in
Length w/ Blade261 in
Length w/o Blade194 in

Transmission

Transmission specifications
2 Forward4.2 mph
3 Forward7.3 mph
2 Reverse5.2 mph
3 Reverse8.9 mph
1 Forward2.4 mph
1 Reverse2.9 mph

Undercarriage

Undercarriage specifications
Track Gauge89 in
Number of Track Rollers per Side8
Standard Shoe Size24 in
Ground Contact Area6,569 in³

General Specifications

General Specifications specifications
Weight lbs (kg)109,705 (49,761) — Starting 2019 Model Year
Engine typeCat C18 ACERT — Starting 2019 Model Year
Engine Power HP (KW)410 (306) — Starting 2019 Model Year

Service Refill Capacities

Service Refill Capacities specifications
Fuel Tank235.0 gal

Standard Blade

Standard Blade specifications
Width170 in
Capacity37.60 yd³

Standards

Standards specifications
FOPSSAE J/ISO3449 APR98 Level II ISO 3449:1992 Level II
ROPSSAE J1040 MAY94 ISO 3471:1994
