Caterpillar
EL240B
- Operating Weight
- 52,029 lb
- Max Digging Depth
- 241 in
- Max Digging Depth
- 265 in
- Net Power
- 148.0 hp
1 / 5

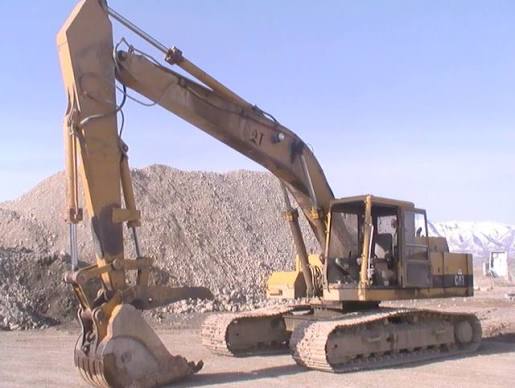

Image 1 of 5
Specifications
51 data points
Operating Specifications
| Operating Weight | 52,029 lb |
|---|---|
| Fuel Capacity | 74.0 gal |
| Hydraulic Pump Flow Capacity | 121.6 gal/min |
| Hydraulic System Fluid Capacity | 79.3 gal |
| Hydraulic System Relief Valve Pressure | 3,983 psi |
| Engine Oil Capacity | 4.0 gal |
| Cooling System Fluid Capacity | 7.0 gal |
| Operating Voltage | 24 V |
| Swing Drive Fluid Capacity | 2.6 gal |
| Alternator Supplied Amperage | 55 A |
Engine
| Engine Model | 3116 |
|---|---|
| Displacement | 403 in³ |
| Power Measured @ | 2,200 rpm |
| Net Power | 148.0 hp |
| Aspiration | turbocharged |
Dimensions
| Ground Clearance | 19 in |
|---|---|
| Height - Top of Cab | 118 in |
| Length of Track on Ground | 148 in |
| Tail Swing Radius | 115 in |
| Width to Outside of Tracks | 133 in |
| Removal Counterweight Clearance | 44 in |
Undercarriage
| Ground Pressure | 5 psi |
|---|---|
| Track Gauge | 102 in |
| Number of Track Rollers per Side | 8 |
| Max Travel Speed | 2.2 mph |
| Shoe Size | 32 in |
| Number of Shoes per Side | 50 |
| Drawbar Pull | 41,140 lb |
Boom/Stick Excavator Option 1
| Max Digging Depth | 241 in |
|---|---|
| Max Reach Along Ground | 371 in |
| Max Loading Height | 248 in |
| Max Vertical Wall Digging Depth | 199 in |
| Max Cutting Height | 362 in |
| Shipping Length of Unit | 384 in |
| Shipping Height of Unit | 120 in |
Bucket
| Reference Bucket Capacity | 1.29 yd³ |
|---|---|
| Maximum Bucket Capacity | 2.39 yd³ |
| Minimum Bucket Capacity | 0.80 yd³ |
Swing Mechanism
| Swing Speed | 10 rpm |
|---|
Boom/Stick Excavator Option 2
| Max Digging Depth | 265 in |
|---|---|
| Max Vertical Wall Digging Depth | 233 in |
| Max Cutting Height | 378 in |
| Max Loading Height | 261 in |
| Max Reach Along Ground | 395 in |
| Shipping Length of Unit | 384 in |
| Shipping Height of Unit | 120 in |
Boom/Stick Excavator Option 3
| Max Digging Depth | 293 in |
|---|---|
| Max Cutting Height | 384 in |
| Max Loading Height | 268 in |
| Max Vertical Wall Digging Depth | 258 in |
| Max Reach Along Ground | 418 in |
