Caterpillar
Hyster
H110FT
Forklift
38 specifications
1 / 5

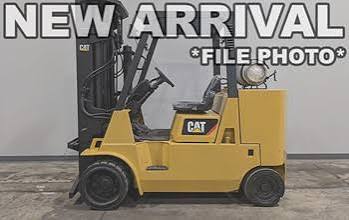

Image 1 of 5
Specifications
27 data points
Operating Specifications
| Operating Weight | 15,850 lb |
|---|---|
| Max Speed | 12.1 mph |
| Number of Front Wheels | 2 |
| Number of Rear Wheels | 2 |
| Tire Type | cushion |
Engine
| Engine Model | V6 |
|---|---|
| Displacement | 262,403 in³ |
| Power Measured @ | 2,450 rpm |
| Torque Measured @ | 1,200 rpm |
| Power | 92.5 hp |
| Fuel Type | gas |
| Torque | 220 lb-ft |
Dimensions
| Ground Clearance | 4 in |
|---|---|
| Wheelbase | 71 in |
| Overall Width | 53 in |
| Turning Radius | 101 in |
| Overall Height - mast lowered | 84 in |
| Length to Fork Face | 115 in |
| Height to Top of Overhead Guard | 88 in |
| Max Fork Height | 115 in |
Mast
| Load Capacity | 12,125 lb |
|---|---|
| Load Center | 24 in |
| Lift Speed | 0.9 mph |
| Mast Tip Forward | 5 ° |
| Mast Tip Rear | 10 ° |
| Lower Speed | 0.9 mph |
| Max Fork Spread | 41 in |
