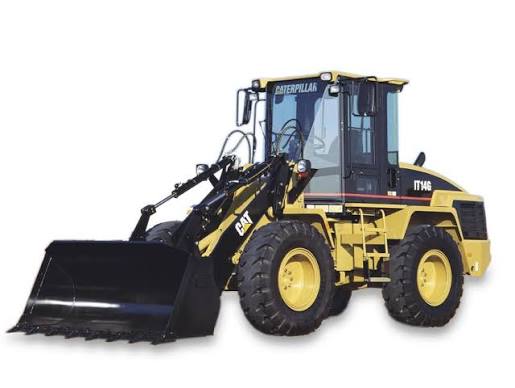

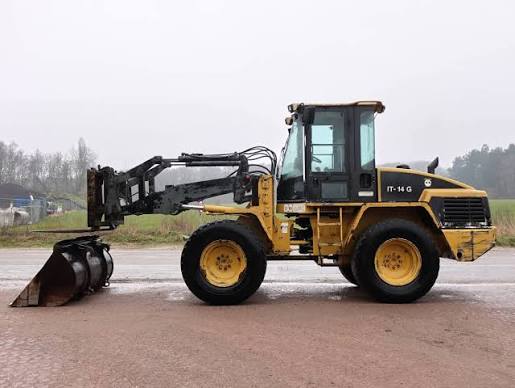

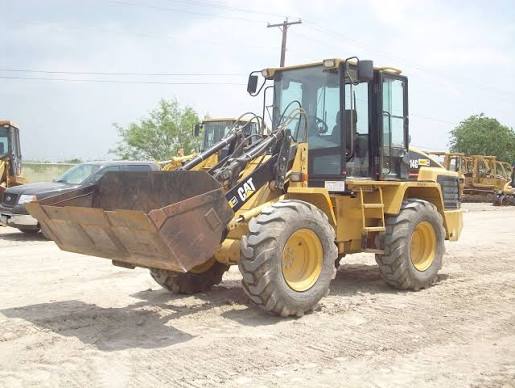

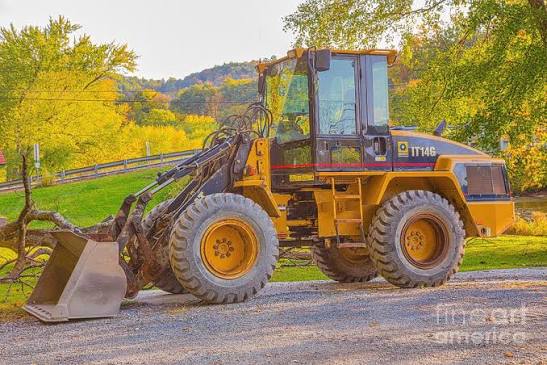

IT14G

Specifications

49 data points

Operating Specifications specifications
Operating Weight	18,632 lb
Fuel Capacity	39.6 gal
Tire Size	17.5-25
Hydraulic System Fluid Capacity	26.4 gal
Operating Voltage	24 V
Turning Radius	409 in
Rear Axle Oscillation	11 °
Alternator Supplied Amperage	80 A
Cooling System Fluid Capacity	6.1 gal
Transmission Fluid Capacity	26.4 gal
Engine Oil Capacity	26.4 gal
Static Tipping Load - Bucket	12,218 lb
Front Diff Fluid Capacity	4.0 gal
Rear Diff Fluid Capacity	4.0 gal
Static Tipping Load - Forks	9,806 lb
Static Tipping Load - Material Handler	6,963 lb

Dimensions specifications
Ground Clearance	18 in
Height - Top of Cab	122 in
Wheelbase	102 in
Width Over Tires	91 in
Hinge Pin - Max Height	150 in
Length w/ Bucket on Ground	253 in
Dump Clearance at Max Lift	115 in
Reach at Max Height and Dump	31 in
Max Lift Height	146 in
Fork Tine Length	42 in
Length with out Forks on Ground	265 in
Hook Reach at Max Lift - standard	55 in
Hook Height at Max Lift - standard	204 in
Hook Reach at Max Lift - extended	99 in
Hook Height at Max Lift - extended	269 in
