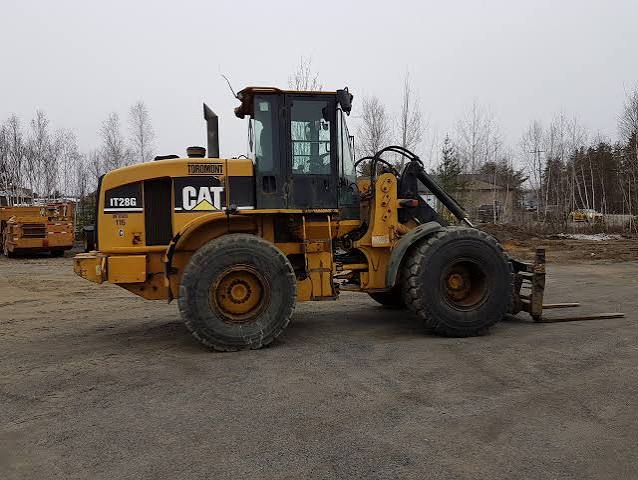

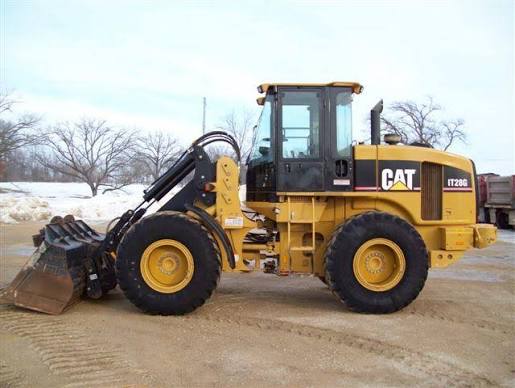

IT28G

Specifications

49 data points

Operating Specifications specifications
Fuel Capacity	57.1 gal
Tire Size	20.5R25 L3 XHA
Hydraulic System Fluid Capacity	33.1 gal
Operating Voltage	24 V
Turning Radius	200 in
Rear Axle Oscillation	11 °
Alternator Supplied Amperage	80 A
Front Axle/Diff Fluid Capacity	6.9 gal
Rear Axle/Diff Fluid Capacity	6.7 gal
Cooling System Fluid Capacity	11.1 gal
Transmission Fluid Capacity	9.2 gal
Engine Oil Capacity	4.3 gal
Static Tipping Load - Bucket	19,917 lb
Front Diff Fluid Capacity	6.9 gal
Rear Diff Fluid Capacity	6.7 gal
Static Tipping Load - Material Handler	11,806 lb

Dimensions specifications
Ground Clearance	17 in
Height - Top of Cab	130 in
Wheelbase	115 in
Width Over Tires	101 in
Reach at Max Lift and Dump	39 in
Length with Bucket on Ground	287 in
Hinge Pin - Max Height	157 in
Length w/ Bucket on Ground	289 in
Dump Clearance at Max Lift	115 in
Reach at Max Height and Dump	41 in
Max Lift Height	152 in
Fork Tine Length	48 in
Length with out Forks on Ground	298 in
