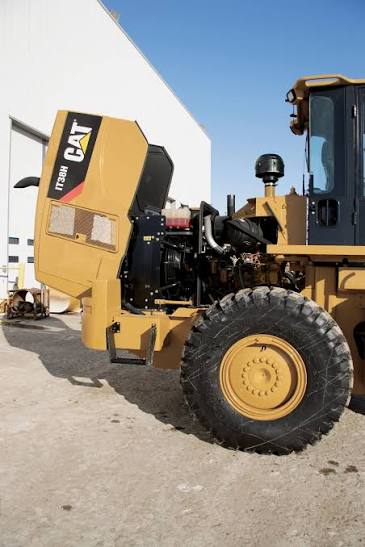

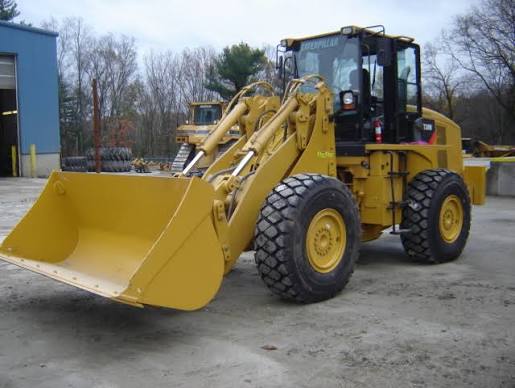

Caterpillar
IT38H
- Operating Weight
- 35,283 lb
- Bucket Capacity - heaped
- 4.00 yd³
- Gross Power
- 197.2 hp
- Net Power
- 178.4 hp
1 / 5
Image 1 of 5
Specifications
84 data points
Operating Specifications
| Operating Weight | 35,283 lb |
|---|---|
| Fuel Capacity | 65.3 gal |
| Tire Size | 20.5-R25 |
| Hydraulic System Fluid Capacity | 23.6 gal |
| Operating Voltage | 24 V |
| Turning Radius | 240 in |
| Rear Axle Oscillation | 12 ° |
| Alternator Supplied Amperage | 65 A |
| Cooling System Fluid Capacity | 9.6 gal |
| Transmission Fluid Capacity | 11.4 gal |
| Engine Oil Capacity | 4.6 gal |
| Static Tipping Load - Bucket | 23,918 lb |
| Front Diff Fluid Capacity | 15.1 gal |
| Rear Diff Fluid Capacity | 14.1 gal |
| Static Tipping Load - Forks | 19,546 lb |
| Breakout Force | 27,576 lb |
| Static Tipping Load - Material Handler | 11,599 lb |
| Static Tipping Load - Full Turn | 22,207 lb |
Engine
| Engine Model | Cat 6.6 ACERT |
|---|---|
| Displacement | 403 in³ |
| Power Measured @ | 2,100 rpm |
| Gross Power | 197.2 hp |
| Net Power | 178.4 hp |
| Torque Measured @ | 1,400 rpm |
| Max Torque | 620 lb-ft |
| Bore | 4 in |
| Stroke | 5 in |
| Gross Power - SAE J1995 | 197.0 hp |
| Net Power - ISO 9249 | 180.0 hp |
| Net Power - SAE J1349 | 178.0 hp |
| Net Power - 80/1269/EEC | 180.0 hp |
| Peak Torque - 1,400 rpm - Net | 620 lb-ft |
| Total Torque Rise | 0 |
Weights
| Operating Weight | 33,190 lb |
|---|
Hydraulic System
| Pump Flow Capacity | 78.0 gal/min |
|---|---|
| Raise Time | 5.0 s |
| Lower Time | 2.7 s |
| Dump Time | 2.0 s |
| Relief Valve Setting | 1,000 psi |
| Pump Type | Piston |
| Hydraulic Cycle Time - Dump | 1.4 s |
| Hydraulic Cycle Time - Total | 9.5 s |
| Hydraulic Cycle Time - Lower, Empty, Float Down | 2.7 s |
| Hydraulic Cycle Time - Raise | 5.4 s |
| Steering System - Pump Type | Piston |
| Pilot System - Pump Output | 77.9 gal/min |
Dimensions
| Ground Clearance | 17 in |
|---|---|
| Height - Top of Cab | 133 in |
| Wheelbase | 120 in |
| Width Over Tires | 106 in |
| Hinge Pin - Max Height | 156 in |
| Length w/ Bucket on Ground | 298 in |
| Dump Clearance at Max Lift | 111 in |
| Reach at Max Height and Dump | 46 in |
| Max Lift Height | 141 in |
| Fork Tine Length | 60 in |
| Length with out Forks on Ground | 329 in |
| Height at Hook Max Reach | 73 in |
Transmission
| Max Speed - Forward | 26.9 mph |
|---|---|
| Max Speed - Reverse | 15.9 mph |
| Number of Forward Gears | 4 |
| Number of Reverse Gears | 3 |
| Forward - 1 | 5.0 mph |
| Reverse - 1 | 5.0 mph |
| Forward - 2 | 9.1 mph |
| Reverse - 2 | 9.1 mph |
| Forward - 3 | 15.8 mph |
| Reverse - 3 | 15.8 mph |
| Forward - 4 | 26.8 mph |
Brakes & Steering
| Brakes | Meets required standards |
|---|
Bucket
| Bucket Capacity - heaped | 4.00 yd³ |
|---|---|
| Bucket Capacity - struck | 3.10 yd³ |
| Breakout Force | 28,326 lb |
| Bucket Capacities | 4.00 yd³ |
| Maximum Bucket Capacity | 4.00 yd³ |
Service Refill Capacities
| Cooling System | 9.5 gal |
|---|---|
| Transmission | 11.4 gal |
| Crankcase | 4.6 gal |
| Differential - Final Drives - Front | 15.1 gal |
| Differential - Final Drives - Rear | 14.0 gal |
| Hydraulic Tank | 23.5 gal |
| Fuel Tank - Standard | 65.3 gal |
Axles
| Front | Fixed front |
|---|---|
| Maximum Single-Wheel Rise and Fall | 17 in |
