Michigan

L70

Wheel Loader

Operating Weight
21,320 lb
Bucket Capacity - heaped
2.30 yd³
Gross Power
118.0 hp
Net Power
110.0 hp
All wheel loaders

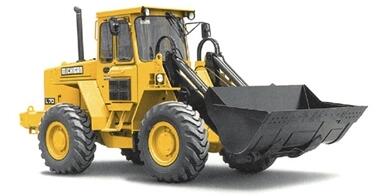

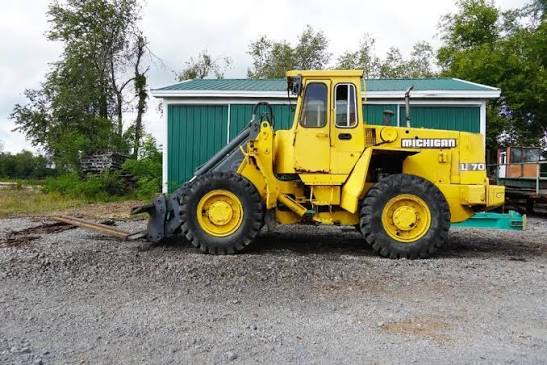

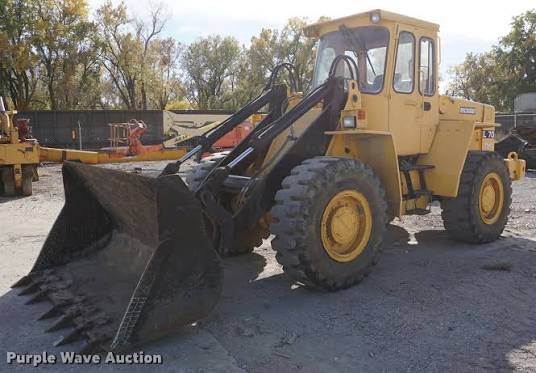

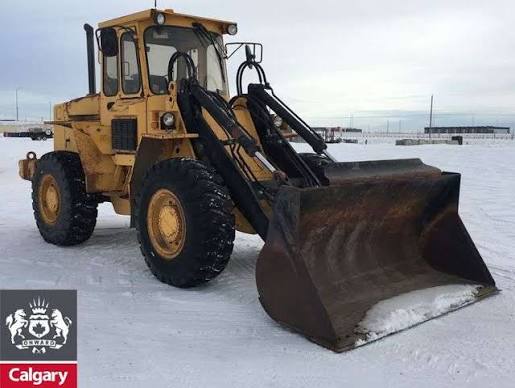

Michigan L70 Wheel Loader
1 / 5
Image 1 of 5
Image: volvoce.com

Specifications

51 data points

Operating Specifications

Operating Specifications specifications
Operating Weight21,320 lb
Fuel Capacity48.9 gal
Tire Size17.5-25 (12PR) L-2
Hydraulic System Fluid Capacity34.4 gal
Operating Voltage24 V
Turning Radius220 in
Rear Axle Oscillation26 °
Alternator Supplied Amperage60 A
Cooling System Fluid Capacity7.2 gal
Transmission Fluid Capacity5.9 gal
Engine Oil Capacity2.8 gal
Static Tipping Load - Bucket15,140 lb
Front Diff Fluid Capacity6.9 gal
Rear Diff Fluid Capacity6.0 gal
Static Tipping Load - Forks8,819 lb
Static Tipping Load - Material Handler4,850 lb

Engine

Engine specifications
Engine ModelTD 45B
Displacement273 in³
Power Measured @2,200 rpm
Gross Power118.0 hp
Net Power110.0 hp
Number of Cylinders4
Aspirationturbocharged
Torque Measured @1,400 rpm
Max Torque325 lb-ft

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity45.0 gal/min
Raise Time5.1 s
Lower Time2.4 s
Dump Time1.7 s
Relief Valve Setting2,975 psi
Pump Typevane type

Dimensions

Dimensions specifications
Ground Clearance16 in
Height - Top of Cab117 in
Wheelbase113 in
Width Over Tires93 in
Hinge Pin - Max Height146 in
Reach at Max Height and Dump42 in
Length w/ Bucket on Ground263 in
Dump Clearance at Max Lift110 in
Max Lift Height142 in
Fork Tine Length49 in
Length with out Forks on Ground264 in
Height at Hook Max Reach61 in

Transmission

Transmission specifications
Max Speed - Forward23.9 mph
Max Speed - Reverse14.5 mph
Transmission TypeVolvo BM HT 90 automatic powershift
Number of Forward Gears4
Number of Reverse Gears3

Bucket

Bucket specifications
Bucket Capacity - heaped2.30 yd³
Bucket Capacity - struck2.00 yd³
Breakout Force23,920 lb
