Caterpillar
Liugong
936E
Excavator
Specifications pending
1 / 5

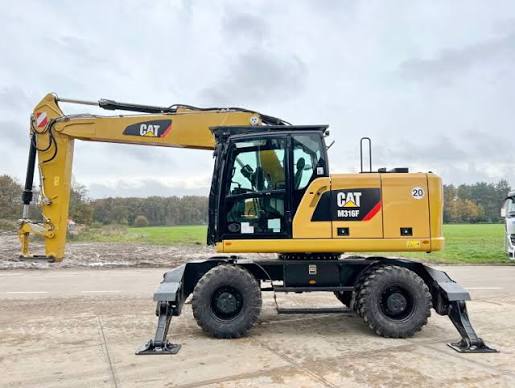

Image 1 of 5
Specifications
49 data points
Engine
| Engine Model | Cat C4.4 ACERT |
|---|---|
| Displacement | 269 in³ |
| Net Power | 141.0 hp |
| Number of Cylinders | 4 |
| Bore | 4 in |
| Stroke | 5 in |
| Maximum Torque - 1,400 rpm | 413 lb-ft |
| Ratings | 2,000 rpm |
| Engine Power - Maximum Gross - ISO 14396 | 147.5 hp |
| Note | *Metric values. |
| Engine Power - Maximum Net - ISO 9249/SAE J1349 | 140.8 hp |
| Engine Gross Power (Maximum) - ISO 14396 | 148.0 hp |
Weights
| One-Piece Boom - Front and Rear Outriggers | 35,605 lb |
|---|---|
| VA Boom - Front and Rear Outriggers | 36,663 lb |
| VA Boom - Rear Dozer, Front Outriggers | 36,068 lb |
Hydraulic System
| Maximum Flow - Auxiliary Circuit - Medium Pressure | 13.2 gal/min |
|---|---|
| Maximum Pressure - Auxiliary Circuit - High Pressure | 5,076 psi |
| Maximum Pressure - Implement Circuit - Heavy Lift | 5,439 psi |
| System | 63.4 gal |
| Maximum Flow - Implement/Travel Circuit | 63.0 gal/min |
| Maximum Pressure - Auxiliary Circuit - Medium Pressure | 2,683 psi |
| Maximum Pressure - Implement Circuit - Normal | 5,076 psi |
| Tank Capacity | 32.2 gal |
| Maximum Pressure - Swing Mechanism | 5,366 psi |
| Maximum Pressure - Implement Circuit - Normal and Travel Circuit | 5,076 psi |
| Swing Mechanism | 5,366 psi |
Transmission
| Creeper Speed - 1st Gear | 1.9 mph |
|---|---|
| Creeper Speed - 2nd Gear | 6.2 mph |
| Forward/Reverse - 1st Gear | 6.2 mph |
| Forward/Reverse - 2nd Gear | 22.0 mph |
| Maximum Forward/Reverse - 2nd Gear | 22.0 mph |
Undercarriage
| Ground Clearance | 16 in |
|---|---|
| Oscillation Axle Angle | 9 ° |
Tires & Wheels
| Standard | 10.00-20 (Dual Pneumatic) |
|---|
Bucket
| Bucket Capacities | — |
|---|
Drive System
| Maximum Travel Speed | 22.0 mph |
|---|
Service Refill Capacities
| Cooling System | 10.0 gal |
|---|---|
| Engine Crankcase | 2.1 gal |
| Front Steering Axle - Differential | 2.8 gal |
| Powershift Transmission | 0.7 gal |
| Rear Axle - Housing (Differential) | 3.7 gal |
| Final Drive | 0.7 gal |
| Diesel Exhaust Fluid Tank | 5.0 gal |
| Fuel Tank - Total Capacity | 87.2 gal |
Swing Mechanism
| Swing Speed | 9 rpm |
|---|---|
| Swing Torque | 28,120 lb-ft |
| Maximum Swing Torque | 371,724 in |
Working Ranges
| Maximum Digging Depth | 240 in |
|---|---|
| Maximum Reach - Ground Level | 370 in |
