Caterpillar
Liugong
936E
Excavator
Specifications pending
1 / 5

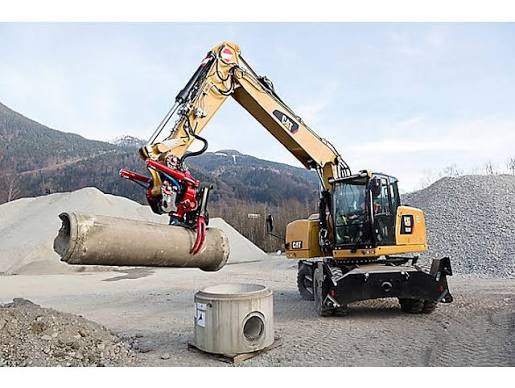

Image 1 of 5
Specifications
51 data points
Engine
| Engine Model | Cat C7.1 ACERT |
|---|---|
| Displacement | 428 in³ |
| Net Power | 169.0 hp |
| Number of Cylinders | 6 |
| Bore | 4 in |
| Stroke | 5 in |
| Maximum Torque - 1,400 rpm | 578 lb-ft |
| Ratings | 1,750 rpm |
| Engine Power - Maximum Gross - ISO 14396 | 173.5 hp |
| Note | *Metric values. |
| Engine Power - Maximum Net - ISO 9249/SAE J1349 | 169.0 hp |
| Engine Gross Power (Maximum) - ISO 14396 | 174.0 hp |
Weights
| One-Piece Boom - Front and Rear Outriggers | 40,080 lb |
|---|---|
| VA Boom - Front and Rear Outriggers | 41,160 lb |
| VA Boom - Rear Dozer, Front Outriggers | 40,587 lb |
| One-Piece Boom - Rear Dozer, Front Outriggers | 39,507 lb |
Hydraulic System
| Maximum Flow - Auxiliary Circuit - Medium Pressure | 12.9 gal/min |
|---|---|
| Maximum Pressure - Auxiliary Circuit - High Pressure | 5,076 psi |
| Maximum Pressure - Implement Circuit - Heavy Lift | 5,366 psi |
| System | 55.5 gal |
| Maximum Flow - Implement/Travel Circuit | 67.0 gal/min |
| Maximum Pressure - Implement Circuit - Normal | 5,076 psi |
| Tank Capacity | 32.2 gal |
| Maximum Pressure - Implement Circuit - Normal and Travel Circuit | 5,076 psi |
| Swing Mechanism | 5,366 psi |
Transmission
| Drawbar Pull | 23,155 lb |
|---|---|
| Creeper Speed - 1st Gear | 1.9 mph |
| Creeper Speed - 2nd Gear | 7.5 mph |
| Forward/Reverse - 1st Gear | 6.2 mph |
| Forward/Reverse - 2nd Gear | 21.7 mph |
| Maximum Gradeability | 64.0 % |
| Maximum Forward/Reverse - 2nd Gear | 22.0 mph |
Undercarriage
| Ground Clearance | 16 in |
|---|---|
| Oscillation Axle Angle | 9 ° |
Tires & Wheels
| Standard | 10.00-20 (Dual Pneumatic) |
|---|---|
| Optional | 1) 11.00-20 (Dual Pneumatic); 2) 445/70/R19.5 TL XF (Single Pneumatic); 3) 10.00-20 (Dual Solid Rubber) |
Bucket
| Bucket Capacities | 1.43 yd³ |
|---|
Drive System
| Maximum Travel Speed | 22.0 mph |
|---|
Service Refill Capacities
| Cooling System | 12.4 gal |
|---|---|
| Engine Crankcase | 4.9 gal |
| Front Steering Axle - Differential | 2.8 gal |
| Powershift Transmission | 0.7 gal |
| Rear Axle - Housing (Differential) | 3.7 gal |
| Final Drive | 0.7 gal |
| Diesel Exhaust Fluid Tank | 9.1 gal |
| Fuel Tank - Total Capacity | 87.2 gal |
Swing Mechanism
| Swing Speed | 10 rpm |
|---|---|
| Swing Torque | 28,027 lb-ft |
| Maximum Swing Torque | 371,724 in |
Working Ranges
| Maximum Digging Depth | 233 in |
|---|---|
| Maximum Reach - Ground Level | 364 in |
