CaterpillarCaterpillar

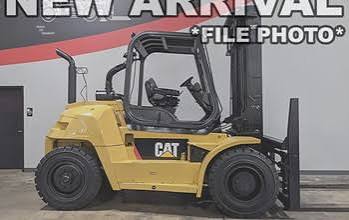

GC70K
Forklift
27 specifications
1 / 5
Image 1 of 5
Specifications
28 data points
Operating Specifications
| Operating Weight | 27,646 lb |
|---|---|
| Max Speed | 20.0 mph |
| Number of Front Wheels | 4 |
| Number of Rear Wheels | 2 |
| Tire Type | pneumatic |
Engine
| Engine Model | 6M60-TL |
|---|---|
| Displacement | 460 in³ |
| Power Measured @ | 2,100 rpm |
| Number of Cylinders | 6 |
| Torque Measured @ | 1,600 rpm |
| Power | 148.0 hp |
| Fuel Type | diesel |
| Torque | 450 lb-ft |
Dimensions
| Ground Clearance | 9 in |
|---|---|
| Wheelbase | 104 in |
| Overall Width | 95 in |
| Turning Radius | 151 in |
| Overall Height - mast lowered | 115 in |
| Length to Fork Face | 161 in |
| Height to Top of Overhead Guard | 113 in |
| Max Fork Height | 133 in |
Mast
| Load Capacity | 17,637 lb |
|---|---|
| Load Center | 24 in |
| Lift Speed | 1.3 mph |
| Mast Tip Forward | 15 ° |
| Mast Tip Rear | 12 ° |
| Lower Speed | 1.2 mph |
| Max Fork Spread | 66 in |
