Caterpillar
Komatsu
FB15M-3
Forklift
22 specifications
1 / 5

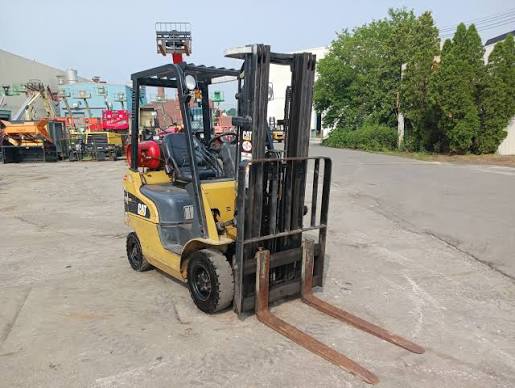

Image 1 of 5
Specifications
27 data points
Operating Specifications
| Operating Weight | 5,500 lb |
|---|---|
| Max Speed | 12.0 mph |
| Number of Front Wheels | 2 |
| Number of Rear Wheels | 2 |
| Tire Type | pneumatic |
Engine
| Engine Model | K21 |
|---|---|
| Displacement | 126 in³ |
| Power Measured @ | 2,875 rpm |
| Torque Measured @ | 1,600 rpm |
| Power | 54.5 hp |
| Fuel Type | gas |
| Torque | 110 lb-ft |
Dimensions
| Ground Clearance | 4 in |
|---|---|
| Wheelbase | 55 in |
| Overall Width | 42 in |
| Turning Radius | 77 in |
| Overall Height - mast lowered | 85 in |
| Length to Fork Face | 90 in |
| Height to Top of Overhead Guard | 83 in |
| Max Fork Height | 131 in |
Mast
| Load Capacity | 3,307 lb |
|---|---|
| Load Center | 20 in |
| Lift Speed | 1.4 mph |
| Mast Tip Forward | 6 ° |
| Mast Tip Rear | 10 ° |
| Lower Speed | 1.1 mph |
| Max Fork Spread | 36 in |
