Nissan
Komatsu
FG25T-12
Forklift
32 specifications
1 / 5

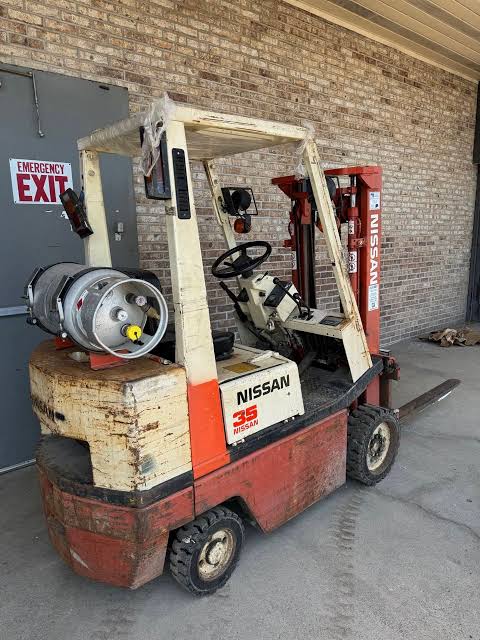

Image 1 of 5
Specifications
33 data points
Operating Specifications
| Operating Weight | 6,173 lb |
|---|---|
| Max Speed | 11.5 mph |
| Number of Front Wheels | 2 |
| Number of Rear Wheels | 2 |
| Tire Type | pneumatic |
| Drawbar Pull | 3,705 lb |
| Tire Size | Front - 6.50-10-10PR Rear - 5.00-8-8-PR |
Engine
| Engine Model | MP1F1A15JV / LV / DV |
|---|---|
| Displacement | 126 in³ |
| Power Measured @ | 2,700 rpm |
| Torque Measured @ | 2,000 rpm |
| Engine Make | Nissan Forklift |
| Power | 55.0 hp |
| Torque | 111 lb-ft |
| Model Name | Nissan K21 |
Dimensions
| Ground Clearance | 5 in |
|---|---|
| Wheelbase | 55 in |
| Overall Width | 42 in |
| Turning Radius | 78 in |
| Overall Height - mast lowered | 85 in |
| Length to Fork Face | 91 in |
| Gradeability | 38.0 % |
| Max Fork Height | 131 in |
| Right Angle Stack | 94 in |
| Free lift | 6 in |
Transmission
| Transmission Type | Automatic |
|---|---|
| Number of Forward / Reverse Speeds | 1 |
Mast
| Load Capacity | 3,500 lb |
|---|---|
| Load Center | 24 in |
| Lift Speed | 1.4 mph |
| Mast Tip Forward | 6 ° |
| Mast Tip Rear | 12 ° |
| Lower Speed | 1.1 mph |
