Caterpillar

PM565B

Cold Planer

Operating Weight - Full Load
83,776 lb
Cutting Width
83 in
Displacement
1,099 in³
Gross Power
625.0 hp
All cold planers/milling machines

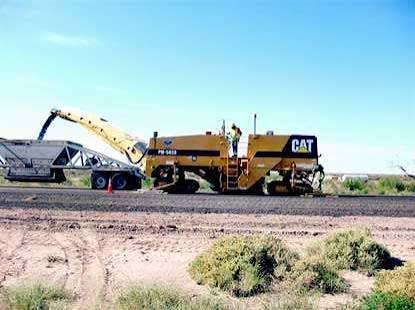

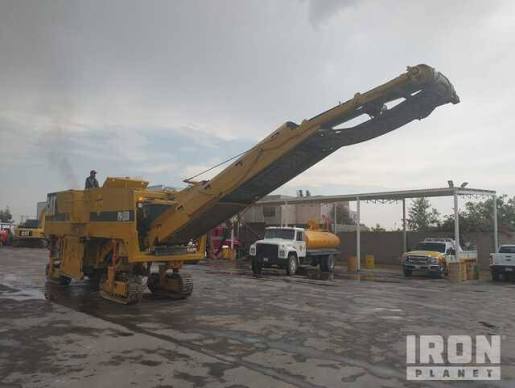

Caterpillar PM565B Cold Planer
1 / 5
Image 1 of 5
Image: avcar.today

Specifications

22 data points

Operating Specifications

Operating Specifications specifications
Operating Weight - Full Load83,776 lb
Operating Speed1.5 mph
Travel Speed3.8 mph
Fuel Capacity250.0 gal
Water Spray System Fluid Capacity1,001.2 gal

Engine

Engine specifications
Engine Model3408ETA
Displacement1,099 in³
Power Measured @2,100 rpm
Gross Power625.0 hp
Number of Cylinders8

Dimensions

Dimensions specifications
Shipping Width125 in
Operating Length571 in
Max Operating Height191 in

Track

Track specifications
Number of Track Units2
Front Track Width14 in
Rear Track Width14 in
Front Track Length81 in
Rear Track Length81 in

Conveyor System

Conveyor System specifications
Discharge Conveyor Width30 in

Rotary Cutter

Rotary Cutter specifications
Cutting Width83 in
Cutting Depth12 in
Number of Tools117
