Caterpillar

R1600G

Wheel Loader

Operating Weight
65,698 lb
Bucket Capacity - heaped
6.30 yd³
Gross Power
248.1 hp
Net Power
221.3 hp
All wheel loaders

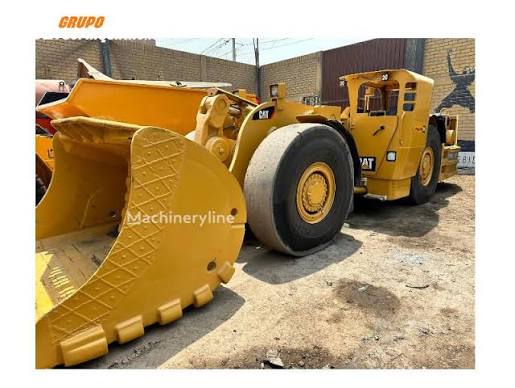

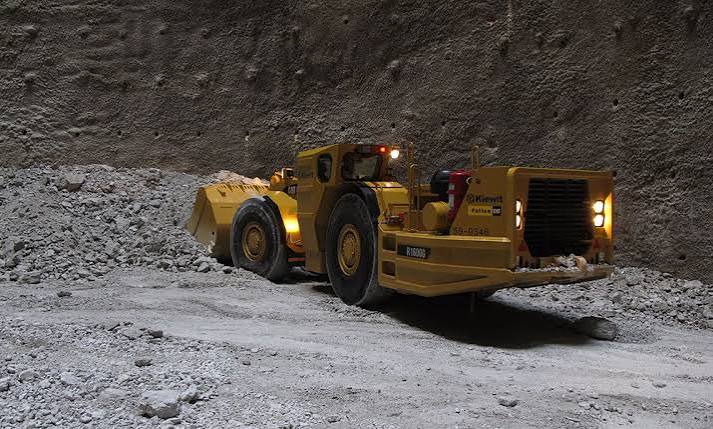

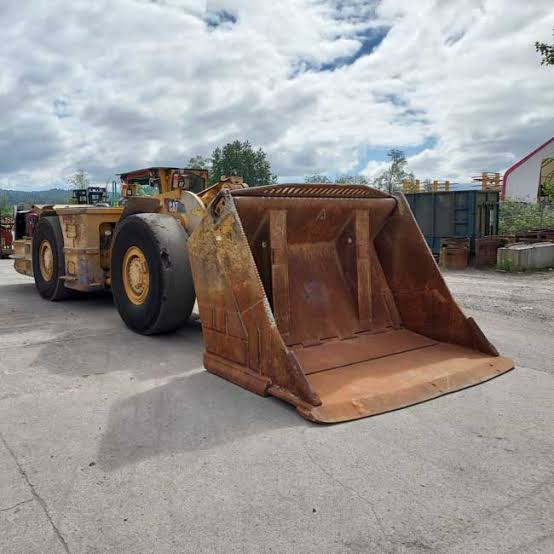

Caterpillar R1600G Wheel Loader
1 / 5
Image 1 of 5
Image: veritread.com

Specifications

35 data points

Operating Specifications

Operating Specifications specifications
Operating Weight65,698 lb
Fuel Capacity105.7 gal
Tire Size18.00x25-28ply
Hydraulic System Fluid Capacity33.1 gal
Static Tipping Weight61,950 lb
Turning Radius261 in
Engine Oil Fluid Capacity9.6 gal
Rear Axle Oscillation20 °
Front Axle/Diff Fluid Capacity21.2 gal
Rear Axle/Diff Fluid Capacity21.2 gal
Cooling System Fluid Capacity14.1 gal
Transmission Fluid Capacity12.5 gal

Engine

Engine specifications
Engine Model3176C EUI ATAAC
Displacement629 in³
Power Measured @2,100 rpm
Gross Power248.1 hp
Net Power221.3 hp

Hydraulic System

Hydraulic System specifications
Raise Time7.6 s
Lower Time2.0 s
Dump Time1.6 s

Dimensions

Dimensions specifications
Ground Clearance15 in
Height - Top of Cab95 in
Wheelbase141 in
Width Over Tires95 in
Reach at Max Lift and Dump56 in
Length with Bucket on Ground398 in
Hinge Pin - Max Height149 in

Transmission

Transmission specifications
Max Speed - Forward13.8 mph
Max Speed - Reverse14.8 mph
Number of Forward Gears4
Number of Reverse Gears4

Bucket

Bucket specifications
Bucket Capacity - heaped6.30 yd³
Dump Clearance at Max Raise88 in
Breakout Force42,505 lb
Bucket Width103 in
