Challenger
MT745B
- Operating Weight
- 31,075 lb
- Displacement
- 537 in³
- Power Measured @
- 2,100 rpm
- Gross Power
- 269.0 hp
1 / 5

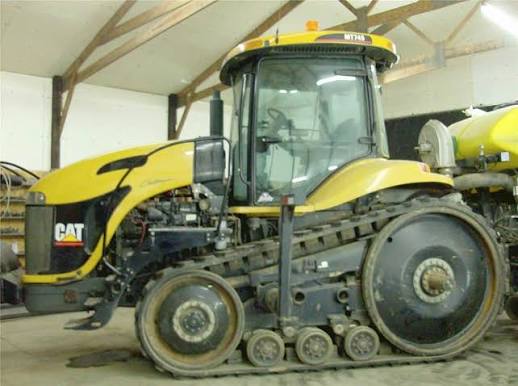

Image 1 of 5
Specifications
25 data points
Operating Specifications
| Operating Weight | 31,075 lb |
|---|---|
| Fuel Capacity | 118.1 gal |
| 3 Point Hitch Lift Capacity @ 24 inches | 16,000 lb |
| 3 Point Hitch Type | Standard Cat.3/3N |
| Alternator Supplied Amperage | 185 A |
| Operating Voltage | 24 V |
Engine
| Engine Model | C9 ACERT Tech Tier 3 |
|---|---|
| Displacement | 537 in³ |
| Power Measured @ | 2,100 rpm |
| Gross Power | 269.0 hp |
| Number of Cylinders | 6 |
| Aspiration | Turbocharged and Air-to-Air Aftercooled |
| PTO Power | 225.0 hp |
Hydraulic System
| Pump Flow Capacity | 43.5 gal/min |
|---|---|
| Number of Remote Control Valves | 4 |
| Relief Valve Pressure | 2,900 psi |
Dimensions
| Ground Clearance | 14 in |
|---|---|
| Height - Top of Cab | 135 in |
| Wheelbase | 96 in |
| Overall Length | 20 in |
| Width Outside Frame | 133 in |
Transmission
| Max Speed | 24.6 mph |
|---|---|
| Number of Forward Gears | 16 |
| Transmission Type | Powershift |
| Number of Reverse Gears | 4 |
