Challenger

MT865B

Tractor

Operating Weight
42,200 lb
Displacement
1,105 in³
Power Measured @
2,100 rpm
Gross Power
510.0 hp
All tractors

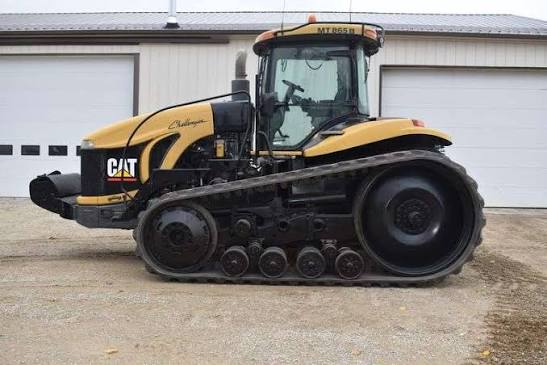

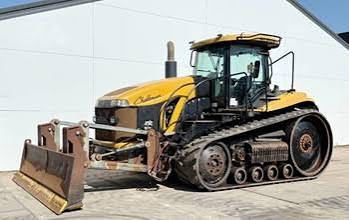

Challenger MT865B Tractor
1 / 5
Image 1 of 5
Image: veritread.com

Specifications

25 data points

Operating Specifications

Operating Specifications specifications
Operating Weight42,200 lb
Fuel Capacity331.3 gal
3 Point Hitch Typeoptional
Alternator Supplied Amperage185 A
Operating Voltage12 V

Engine

Engine specifications
Engine ModelC18 ACERT
Displacement1,105 in³
Power Measured @2,100 rpm
Gross Power510.0 hp
Number of Cylinders6
AspirationTurbocharged and Air-to-Air Aftercooled
PTO Power425.0 hp
Torque Rise42.0 %

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity43.5 gal/min
Number of Remote Control Valves4
Relief Valve Pressure2,900 psi

Dimensions

Dimensions specifications
Ground Clearance15 in
Height - Top of Cab139 in
Wheelbase119 in
Overall Length23 in
Width Outside Frame143 in

Transmission

Transmission specifications
Max Speed24.6 mph
Number of Forward Gears16
Transmission TypePowershift
Number of Reverse Gears4
