Challenger

MT955B

Tractor

Operating Weight
54,000 lb
Displacement
928 in³
Power Measured @
1,800 rpm
Gross Power
460.0 hp
All tractors

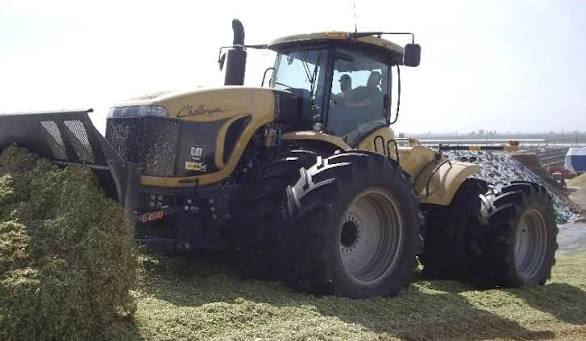

Challenger MT955B Tractor
1 / 5
Image 1 of 5
Image: tractordata.com

Specifications

24 data points

Operating Specifications

Operating Specifications specifications
Operating Weight54,000 lb
Fuel Capacity390.0 gal
3 Point Hitch Lift Capacity @ 24 inches19,500 lb
Alternator Supplied Amperage185 A
Operating Voltage12 V

Engine

Engine specifications
Engine ModelC15 ACERT Tier III
Displacement928 in³
Power Measured @1,800 rpm
Gross Power460.0 hp
Number of Cylinders6
AspirationTurbocharged / Air-to-Air Aftercooled
Torque Measured @1,400 rpm
PTO Power385.0 hp

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity43.5 gal/min
Number of Remote Control Valves4
Relief Valve Setting2,900 psi

Dimensions

Dimensions specifications
Wheelbase156 in
Overall Length25 in
Overall Width192 in
Height - Top of ROPS/FOPS151 in

Transmission

Transmission specifications
Max Speed24.6 mph
Number of Forward Gears16
Transmission TypePowershift
Number of Reverse Gears4
