Claas

Celtis 426

Tractor

Operating Weight
8,885 lb
Displacement
276 in³
Power Measured @
2,200 rpm
Gross Power
73.1 hp
All tractors

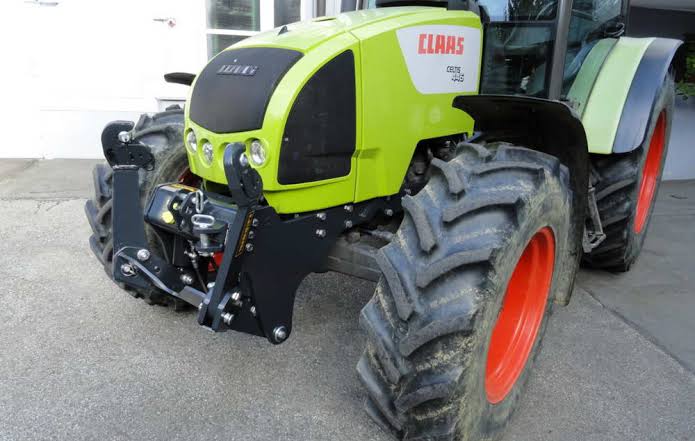

Claas Celtis 426 Tractor
1 / 5
Image 1 of 5
Image: tractors.fandom.com

Specifications

23 data points

Operating Specifications

Operating Specifications specifications
Operating Weight8,885 lb
Fuel Capacity38.4 gal
Turning Radius170 in
Alternator Supplied Amperage75 A
Operating Voltage12 V

Engine

Engine specifications
Engine ModelECE-R24
Displacement276 in³
Power Measured @2,200 rpm
Gross Power73.1 hp
Net Power71.1 hp
Number of Cylinders4

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity15.9 gal/min
Relief Valve Pressure2,611 psi

Dimensions

Dimensions specifications
Ground Clearance15 in
Height - Top of Cab103 in
Wheelbase98 in
Overall Length15 in
Tire SizeFront 11.2R24 Rear 16.9 R 30
Width Outside Frame100 in

Transmission

Transmission specifications
Max Speed24.9 mph
Number of Forward Gears20
Transmission TypeCLAAS
Number of Reverse Gears20
