Claas

CELTIS 446

Tractor

Operating Weight
9,722 lb
Displacement
276 in³
Power Measured @
2,200 rpm
Gross Power
90.6 hp
All tractors

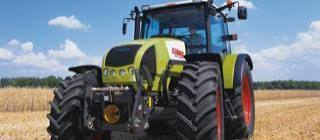

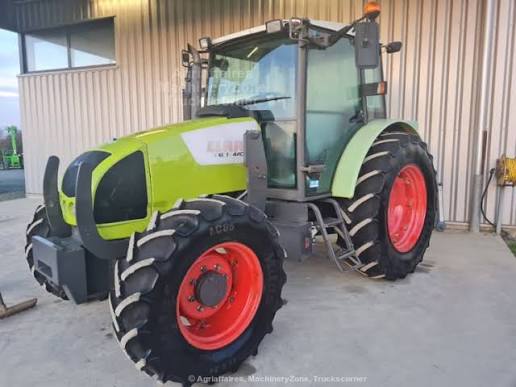

Claas CELTIS 446 Tractor
1 / 5
Image 1 of 5
Image: gribbentractors.com

Specifications

22 data points

Operating Specifications

Operating Specifications specifications
Operating Weight9,722 lb
Fuel Capacity38.4 gal
Turning Radius170 in
Alternator Supplied Amperage75 A
Operating Voltage12 V

Engine

Engine specifications
Engine ModelECE-R24
Displacement276 in³
Power Measured @2,200 rpm
Gross Power90.6 hp
Net Power88.6 hp
Number of Cylinders4

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity15.9 gal/min
Relief Valve Pressure2,611 psi

Dimensions

Dimensions specifications
Height - Top of Cab106 in
Wheelbase98 in
Overall Length15 in
Tire SizeFront 13.6R28 Rear 16.9 R 34
Width Outside Frame100 in

Transmission

Transmission specifications
Max Speed24.9 mph
Number of Forward Gears20
Transmission TypeCLAAS
Number of Reverse Gears20
