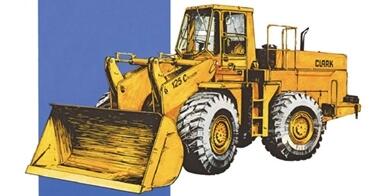

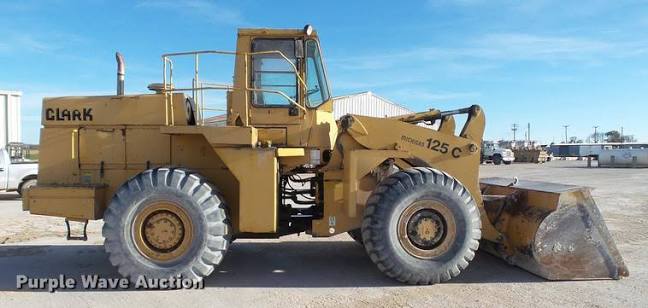

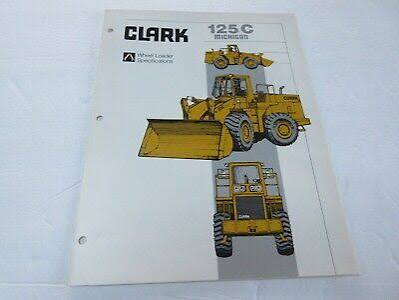

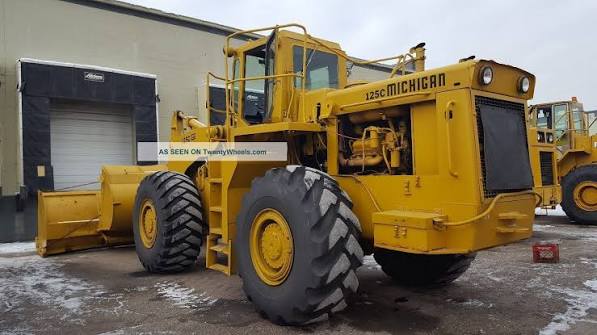

Clark
125C
- Operating Weight
- 43,475 lb
- Bucket Capacity - heaped
- 4.50 yd³
- Gross Power
- 226.7 hp
- Net Power
- 214.6 hp
1 / 5
Image 1 of 5
Specifications
44 data points
Operating Specifications
| Operating Weight | 43,475 lb |
|---|---|
| Fuel Capacity | 75.1 gal |
| Tire Size | 23.5-25 |
| Hydraulic System Fluid Capacity | 76.1 gal |
| Static Tipping Weight | 32,320 lb |
| Operating Voltage | 24 V |
| Turning Radius | 295 in |
| Engine Oil Fluid Capacity | 9.0 gal |
| Rear Axle Oscillation | 19 ° |
| Alternator Supplied Amperage | 100 A |
| Front Axle/Diff Fluid Capacity | 9.1 gal |
| Rear Axle/Diff Fluid Capacity | 9.1 gal |
| Cooling System Fluid Capacity | 15.1 gal |
| Transmission Fluid Capacity | 10.6 gal |
Engine
| Engine Model | LT-10-225 HT |
|---|---|
| Displacement | 611 in³ |
| Power Measured @ | 2,000 rpm |
| Gross Power | 226.7 hp |
| Net Power | 214.6 hp |
| Number of Cylinders | 6 |
| Torque Measured @ | 1,300 rpm |
Hydraulic System
| Pump Flow Capacity | 90.5 gal/min |
|---|---|
| Raise Time | 7.4 s |
| Lower Time | 3.2 s |
| Dump Time | 1.4 s |
| Relief Valve Setting | 2,756 psi |
| Pump Type | tandem gear type |
Dimensions
| Ground Clearance | 15 in |
|---|---|
| Height - Top of Cab | 135 in |
| Wheelbase | 128 in |
| Width Over Tires | 113 in |
| Reach at Max Lift and Dump | 43 in |
| Length with Bucket on Ground | 329 in |
| Hinge Pin - Max Height | 161 in |
Transmission
| Max Speed - Forward | 19.3 mph |
|---|---|
| Max Speed - Reverse | 19.3 mph |
| Transmission Type | Clark countershaft powershift |
| Number of Forward Gears | 4 |
| Number of Reverse Gears | 4 |
Bucket
| Bucket Capacity - heaped | 4.50 yd³ |
|---|---|
| Bucket Capacity - struck | 3.81 yd³ |
| Dump Clearance at Max Raise | 117 in |
| Breakout Force | 39,265 lb |
| Bucket Width | 120 in |
