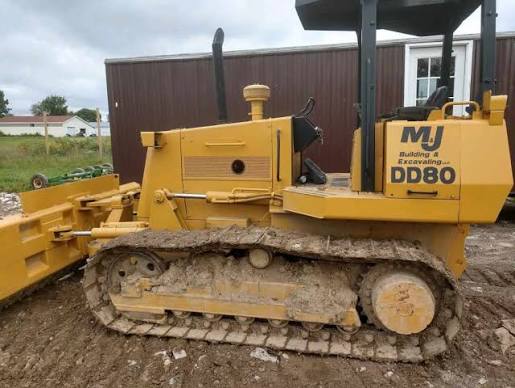

Daewoo
Caterpillar
D3K LGP
Crawler Dozer
35 specifications
1 / 5
Image 1 of 5
Specifications
33 data points
Operating Specifications
| Operating Weight | 17,527 lb |
|---|---|
| Fuel Capacity | 70.1 gal |
| Cooling System Fluid Capacity | 3.8 gal |
| Final Drives Fluid Capacity | 1.2 gal |
| Engine Oil Capacity | 3.2 gal |
| Hydraulic Fluid Capacity | 32.0 gal |
Engine
| Engine Model | DB58 |
|---|---|
| Displacement | 353 in³ |
| Power Measured @ | 1,800 rpm |
| Net Power | 89.0 hp |
| Number of Cylinders | 6 |
| Torque Measured @ | 1,600 rpm |
| Max Torque | 239 lb-ft |
Hydraulic System
| Relief Valve Pressure | 2,770 psi |
|---|---|
| Pump Type | gear |
Dimensions
| Ground Clearance | 17 in |
|---|---|
| Height - Top of Cab | 108 in |
| Length of Track on Ground | 81 in |
| Width Over Tracks | 78 in |
| Length w/ Blade | 165 in |
| Length w/o Blade | 113 in |
Transmission
| Max Speed - Forward | 7.3 mph |
|---|---|
| Max Speed - Reverse | 7.3 mph |
| Transmission Type | Hydrostatic |
Undercarriage
| Ground Pressure | 5 psi |
|---|---|
| Track Gauge | 60 in |
| Number of Track Rollers per Side | 6 |
| Number of Shoes per Side | 39 |
| Number of Carrier Rollers per Side | 1 |
| Standard Shoe Size | 18 in |
| Ground Contact Area | 2,911 in³ |
Standard Blade
| Width | 107 in |
|---|---|
| Capacity | 2.00 yd³ |
