Daewoo
Case
440
Skid Steer Loader
32 specifications
1 / 5
Image 1 of 5
Specifications
24 data points
Operating Specifications
| Operating Weight | 6,777 lb |
|---|---|
| Max Speed | 6.8 mph |
| Fuel Capacity | 18.3 gal |

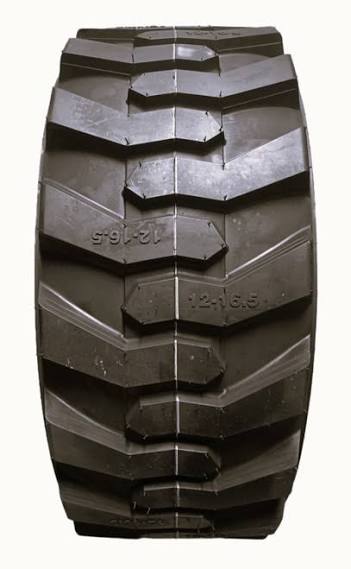

| Tire Size | 12 x 16.5 |
Engine
| Engine Model | D430 |
|---|---|
| Displacement | 182 in³ |
| Power Measured @ | 2,500 rpm |
| Gross Power | 64.0 hp |
| Number of Cylinders | 4 |
Hydraulic System
| Pump Flow Capacity | 20.6 gal/min |
|---|
Dimensions
| Ground Clearance | 9 in |
|---|---|
| Height - Top of Cab | 80 in |
| Wheelbase | 42 in |
| Width Over Tires | 66 in |
| Reach at Max Lift and Dump | 27 in |
| Length with Bucket | 126 in |
| Clearance at Max Lift and Dump | 95 in |
| Turning Radius from Center - inc bucket | 76 in |
| Turning Radius from Center - machine rear | 62 in |
| Length w/o Bucket | 100 in |
Loader
| Bucket Capacity | 0.60 yd³ |
|---|---|
| Operating Load Rating | 2,000 lb |
| Tipping Angle | 4,339 ° |
| Breakout Force | 5,194 psi |
