Daewoo
Tata Hitachi
TWL3036
Wheel Loader
41 specifications
1 / 5

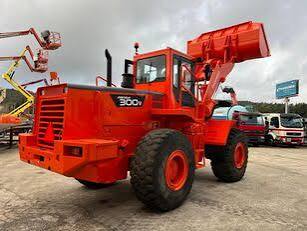

Image 1 of 5
Specifications
30 data points
Operating Specifications
| Fuel Capacity | 79.3 gal |
|---|---|
| Tire Size | 23.5 - 25 - 16PR(L-3) |
| Hydraulic System Fluid Capacity | 52.9 gal |
| Operating Voltage | 24 V |
| Engine Oil Fluid Capacity | 6.7 gal |
| Rear Axle Oscillation | 30 ° |
| Alternator Supplied Amperage | 50 A |
| Front Axle/Diff Fluid Capacity | 15.1 gal |
| Rear Axle/Diff Fluid Capacity | 11.1 gal |
| Cooling System Fluid Capacity | 13.3 gal |
| Transmission Fluid Capacity | 7.4 gal |
Engine
| Engine Model | D2366T |
|---|---|
| Displacement | 674 in³ |
| Power Measured @ | 2,200 rpm |
| Gross Power | 205.0 hp |
| Number of Cylinders | 6 |
| Engine Make | Daewoo |
| Stroke | 6 in |
| Bore | 5 in |
Hydraulic System
| Pump Flow Capacity | 86.7 gal/min |
|---|---|
| Raise Time | 5.6 s |
| Lower Time | 3.5 s |
| Dump Time | 1.3 s |
| Pump Type | Triple tandem vane pump |
| Total cycle | 10.4 s |
Transmission
| Max Speed - Forward | 23.7 mph |
|---|---|
| Max Speed - Reverse | 24.0 mph |
| Transmission Type | Full power-shift |
| Number of Forward Gears | 4 |
| Number of Reverse Gears | 3 |
