Daewoo

SOLAR 340LC V

Excavator

Max Digging Depth
302 in
Max Digging Depth
278 in
Net Power
246.8 hp
All excavators

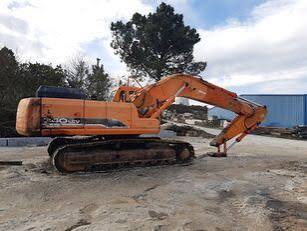

Daewoo SOLAR 340LC V Excavator
1 / 5
Image 1 of 5
Image: veritread.com

Specifications

41 data points

Operating Specifications

Operating Specifications specifications
Hydraulic Pump Flow Capacity138.5 gal/min
Operating Voltage24 V

Engine

Engine specifications
Engine ModelDE12TIS
Displacement674 in³
Power Measured @1,900 rpm
Net Power246.8 hp
Torque Measured @1,400 rpm
Max Torque781 lb-ft
Engine MakeDAEWOO

Dimensions

Dimensions specifications
Ground Clearance20 in
Height - Top of Cab122 in
Length of Track on Ground196 in
Tail Swing Radius138 in
Width to Outside of Tracks130 in
Digging Depth277 in
Digging Reach277 in

Undercarriage

Undercarriage specifications
Number of Track Rollers per Side9
Max Travel Speed2.9 mph
Number of Carrier Rollers per Side2

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth302 in
Max Reach Along Ground245 in
Max Loading Height287 in
Max Vertical Wall Digging Depth245 in
Max Cutting Height411 in
Shipping Length of Unit446 in
Shipping Height of Unit135 in

Swing Mechanism

Swing Mechanism specifications
Swing Speed9 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth278 in
Max Vertical Wall Digging Depth210 in
Max Cutting Height395 in
Max Loading Height272 in
Max Reach Along Ground410 in
Shipping Length of Unit450 in
Shipping Height of Unit138 in

Boom/Stick Excavator Option 3

Boom/Stick Excavator Option 3 specifications
Max Digging Depth335 in
Max Cutting Height426 in
Max Loading Height301 in
Max Vertical Wall Digging Depth276 in
Max Reach Along Ground466 in
Shipping Length of Unit448 in
Shipping Height of Unit154 in
