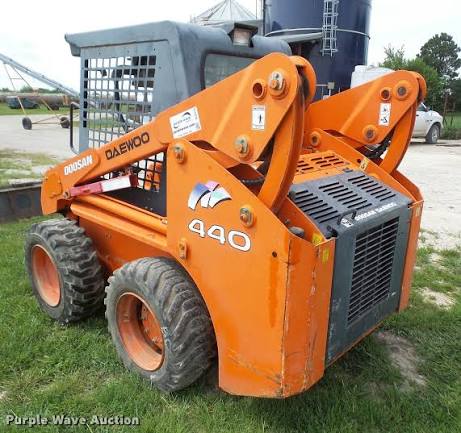

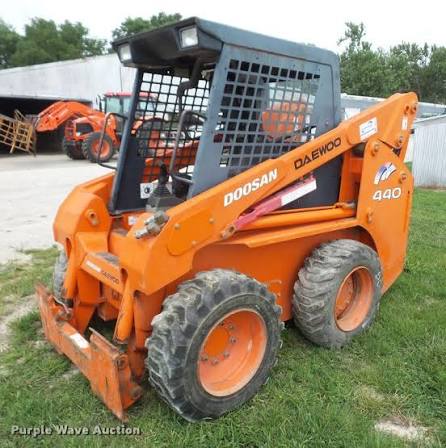

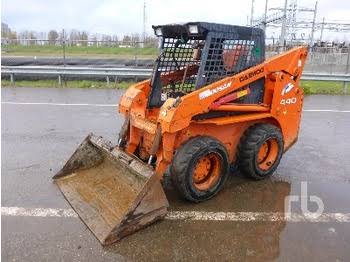

Doosan
Case
440
Skid Steer Loader
32 specifications
1 / 5
Image 1 of 5
Specifications
25 data points
Operating Specifications
| Operating Weight | 6,133 lb |
|---|---|
| Max Speed | 7.3 mph |
| Fuel Capacity | 14.3 gal |
| Tire Size | 10-16.5-8PR |
Engine
| Engine Model | A2300 |
|---|---|
| Displacement | 140 in³ |
| Power Measured @ | 2,600 rpm |
| Gross Power | 47.0 hp |
| Number of Cylinders | 4 |
Hydraulic System
| Pump Flow Capacity | 15.8 gal/min |
|---|---|
| Relief Valve Pressure | 3,002 psi |
| Pump Type | gear type |
Dimensions
| Ground Clearance | 8 in |
|---|---|
| Height - Top of Cab | 78 in |
| Wheelbase | 43 in |
| Width Over Tires | 59 in |
| Reach at Max Lift and Dump | 25 in |
| Length with Bucket | 127 in |
| Clearance at Max Lift and Dump | 88 in |
| Turning Radius from Center - inc bucket | 75 in |
| Turning Radius from Center - machine rear | 63 in |
| Length w/o Bucket | 100 in |
Loader
| Operating Load Rating | 1,973 lb |
|---|---|
| Tipping Angle | 3,946 ° |
| Breakout Force | 2,910 psi |
