Doosan

470 PLUS

Skid Steer Loader

Operating Weight
7,478 lb
Max Speed
7.7 mph
Gross Power
75.0 hp
All skid steer loaders

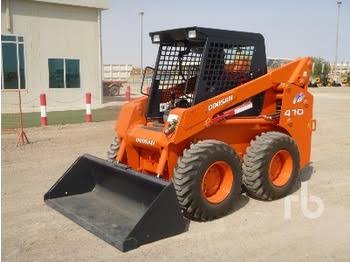

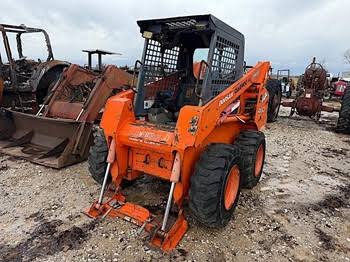

Doosan 470 PLUS Skid Steer Loader
1 / 5
Image 1 of 5
Image: lectura-specs.com

Specifications

26 data points

Operating Specifications

Operating Specifications specifications
Operating Weight7,478 lb
Max Speed7.7 mph
Fuel Capacity15.9 gal
Tire Size12-16.5-8PR

Engine

Engine specifications
Engine ModelB3.3T
Displacement199 in³
Power Measured @2,600 rpm
Gross Power75.0 hp
Number of Cylinders4
Aspirationturbocharged

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity21.7 gal/min
Relief Valve Pressure3,002 psi
Pump Typegear type

Dimensions

Dimensions specifications
Ground Clearance9 in
Height - Top of Cab80 in
Wheelbase42 in
Width Over Tires66 in
Reach at Max Lift and Dump29 in
Length with Bucket128 in
Clearance at Max Lift and Dump96 in
Turning Radius from Center - inc bucket76 in
Turning Radius from Center - machine rear62 in
Length w/o Bucket101 in

Loader

Loader specifications
Operating Load Rating2,500 lb
Tipping Angle5,000 °
Breakout Force4,678 psi
