Doosan

DL300

Wheel Loader

Operating Weight
38,140 lb
Bucket Capacity - heaped
4.00 yd³
Gross Power
227.0 hp
Net Power
217.0 hp
All wheel loaders

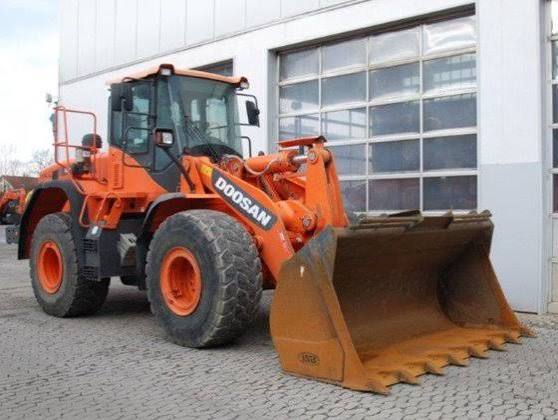

Doosan DL300 Wheel Loader
1 / 5
Image 1 of 5
Image: product.global-ce.com

Specifications

44 data points

Operating Specifications

Operating Specifications specifications
Operating Weight38,140 lb
Fuel Capacity87.2 gal
Tire Size23.5-25-16PR-L3
Hydraulic System Fluid Capacity55.5 gal
Static Tipping Weight31,967 lb
Operating Voltage24 V
Turning Radius251 in
Engine Oil Fluid Capacity9.3 gal
Rear Axle Oscillation24 °
Alternator Supplied Amperage60 A
Front Axle/Diff Fluid Capacity10.1 gal
Rear Axle/Diff Fluid Capacity8.0 gal
Cooling System Fluid Capacity13.3 gal
Transmission Fluid Capacity12.7 gal

Engine

Engine specifications
Engine ModelDL08
Displacement466 in³
Power Measured @2,000 rpm
Gross Power227.0 hp
Net Power217.0 hp
Number of Cylinders6
Aspirationturbo charged air to air intercooler
Torque Measured @1,300 rpm

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity74.0 gal/min
Raise Time5.9 s
Lower Time3.7 s
Dump Time1.9 s
Relief Valve Setting2,901 psi
Pump Typetandem vane pump

Dimensions

Dimensions specifications
Ground Clearance19 in
Height - Top of Cab135 in
Wheelbase126 in
Width Over Tires109 in
Reach at Max Lift and Dump110 in
Length with Bucket on Ground322 in
Hinge Pin - Max Height158 in

Transmission

Transmission specifications
Max Speed - Forward21.5 mph
Max Speed - Reverse14.8 mph
Transmission Typefull power shift
Number of Forward Gears4
Number of Reverse Gears3

Bucket

Bucket specifications
Bucket Capacity - heaped4.00 yd³
Dump Clearance at Max Raise110 in
Breakout Force36,419 lb
Bucket Width115 in
