Doosan

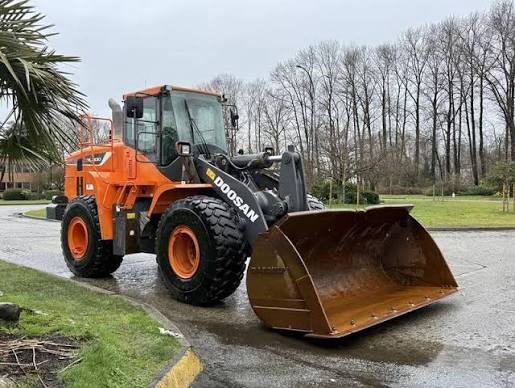

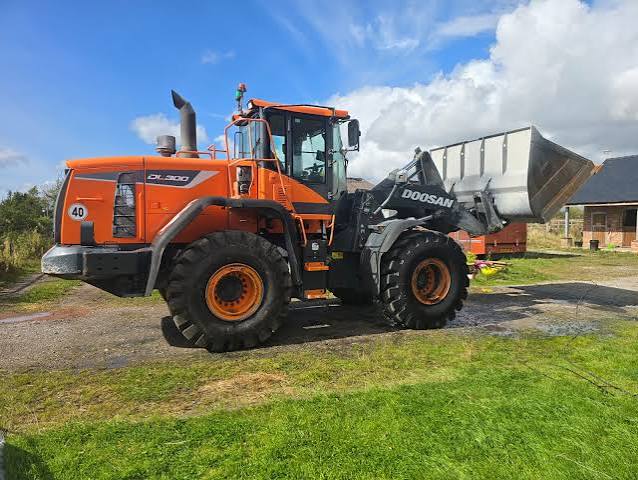

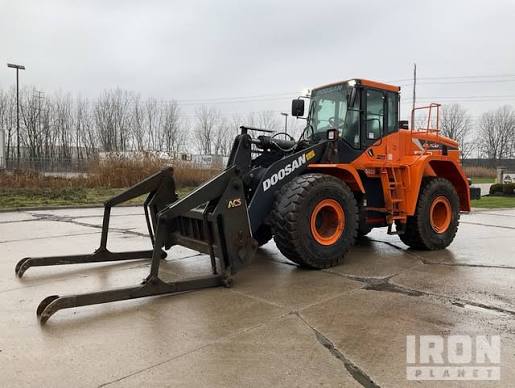

DL300-5
- Operating Weight
- 41,844 lb
- Bucket Capacity - heaped
- 4.20 yd³
- Gross Power
- 271.0 hp
- Net Power
- 271.0 hp
1 / 5
Image 1 of 5
Specifications
52 data points
Operating Specifications
| Operating Weight | 41,844 lb |
|---|---|
| Operating Voltage | 28 V |
| Rear Axle Oscillation | 24 ° |
| Front Axle/Diff Fluid Capacity | 11.0 gal |
| Rear Axle/Diff Fluid Capacity | 11.0 gal |
| Rated Bucket Capacity | 4.20 yd³ |
Engine
| Engine Model | DC09 |
|---|---|
| Displacement | 568 in³ |
| Power Measured @ | 1,800 rpm |
| Gross Power | 271.0 hp |
| Net Power | 271.0 hp |
| Number of Cylinders | 5 |
| Torque Measured @ | 1,400 rpm |
| Engine Make | Scania |
| Make | Scania |
| Stroke | 6 in |
| Bore | 5 in |
| Alternator | 100 A |
| Net Torque | 940 lb-ft |
| Starter | 8.0 hp |
| Horsepower -Net | 271.0 hp |
Weights
| Operating Weight | 41,844 lb |
|---|
Hydraulic System
| Raise Time | 5.8 s |
|---|---|
| Lower Time | 1.4 s |
| Dump Time | 3.2 s |
| Relief Valve Pressure | 3,626 psi |
Dimensions
| Ground Clearance | 19 in |
|---|---|
| Wheelbase | 126 in |
| Overall Length | 319 in |
| Reach at Max Lift and Dump | 47 in |
| Hinge Pin - Max Height | 156 in |
| Overall Height | 137 in |
Transmission
| Max Speed - Forward | 3.9 mph |
|---|
Fluid Capacities
| Fuel Tank | 64.0 gal |
|---|---|
| Hydraulic system | 45.7 gal |
| Engine Oil | 9.0 gal |
| Cooling system | 13.0 gal |
| Transmission | 14.0 gal |
| Diesel exhaust fluid (DEF) tank | 10.0 gal |
Bucket
| Bucket Capacity - heaped | 4.20 yd³ |
|---|---|
| Dump Clearance at Max Raise | 111 in |
| Breakout Force | 37,768 lb |
| Bucket Width | 115 in |
General Specifications
| Operating Weight | 41,502 (18,825) — Starting 2020 Model Year |
|---|---|
| Operating Weight lbs (kg) | 41,844 (18,980) — Starting 2016 Model Year |
| Bucket Capacity | 4.2 (3.2) — Starting 2019 Model Year |
| Bucket Capacity cu. yd. (cu m) | 4.2 (3.2) — Starting 2016 Model Year |
| Engine type | Doosan — Starting 2019 Model Year |
| Engine Power | 275 (205) — Starting 2020 Model Year |
| Max Dump Height | 9.4 (2.9) — Starting 2020 Model Year |
| Max Dump Height ft.( m) | 9.3 (2.85) — Starting 2016 Model Year |
| Engine Power HP (KW) | 271 (202) — Starting 2016 Model Year |
