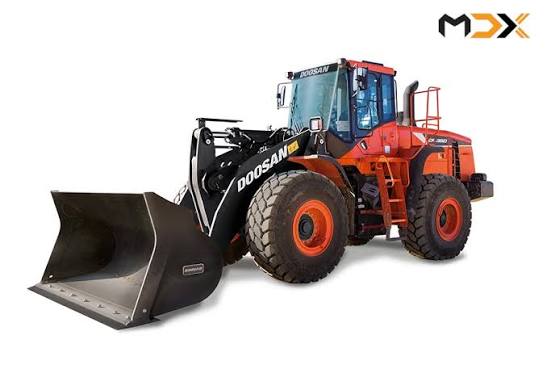

Doosan
DL350-5
- Operating Weight
- 42,869 lb
- Bucket Capacity - heaped
- 4.90 yd³
- Gross Power
- 271.0 hp
- Net Power
- 271.0 hp
.jpg)
1 / 5
Image 1 of 5
Specifications
56 data points
Operating Specifications
| Operating Weight | 42,869 lb |
|---|---|
| Tire Size | 23.5-25 |
| Static Tipping Weight | 34,855 lb |
| Operating Voltage | 28 V |
| Front Axle/Diff Fluid Capacity | 11.0 gal |
| Rear Axle/Diff Fluid Capacity | 11.0 gal |
| Rated Bucket Capacity | 4.80 yd³ |
Engine
| Engine Model | DC09 |
|---|---|
| Displacement | 568 in³ |
| Power Measured @ | 1,800 rpm |
| Gross Power | 271.0 hp |
| Net Power | 271.0 hp |
| Number of Cylinders | 5 |
| Torque Measured @ | 1,400 rpm |
| Engine Make | Scania |
| Make | Scania |
| Stroke | 6 in |
| Bore | 5 in |
| Alternator | 100 A |
| Net Torque | 940 lb-ft |
| Starter | 8.0 hp |
| Horsepower -Net | 271.0 hp |
Weights
| Operating Weight | 43,530 lb |
|---|
Hydraulic System
| Raise Time | 5.9 s |
|---|---|
| Lower Time | 3.5 s |
| Dump Time | 1.4 s |
| Relief Valve Pressure | 3,626 psi |
Dimensions
| Ground Clearance | 18 in |
|---|---|
| Wheelbase | 131 in |
| Overall Length | 328 in |
| Width Over Tires | 110 in |
| Reach at Max Lift and Dump | 49 in |
| Hinge Pin - Max Height | 165 in |
| Overall Height | 138 in |
| Digging Depth | 4 in |
Transmission
| Max Speed - Forward | 22.4 mph |
|---|---|
| Max Speed - Reverse | 17.1 mph |
Fluid Capacities
| Fuel Tank | 64.0 gal |
|---|---|
| Hydraulic system | 61.0 gal |
| Engine Oil | 9.0 gal |
| Cooling system | 13.0 gal |
| Transmission | 14.0 gal |
| Diesel exhaust fluid (DEF) tank | 10.0 gal |
Bucket
| Bucket Capacity - heaped | 4.90 yd³ |
|---|---|
| Dump Clearance at Max Raise | 120 in |
| Breakout Force | 36,869 lb |
| Bucket Width | 119 in |
General Specifications
| Operating Weight | 43,790 (19,862) — Starting 2019 Model Year |
|---|---|
| Operating Weight lbs (kg) | 43,541 (19,750) — Starting 2016 Model Year |
| Bucket Capacity | 4.8 (3.7) — Starting 2019 Model Year |
| Bucket Capacity cu. yd. (cu m) | 4.8 (3.7) — Starting 2016 Model Year |
| Engine type | Doosan — Starting 2019 Model Year |
| Engine Power | 275 (205) — Starting 2019 Model Year |
| Max Dump Height | 9.9 (3.0) — Starting 2020 Model Year |
| Max Dump Height ft.( m) | 10 (3.04) — Starting 2016 Model Year |
| Engine Power HP (KW) | 271 (202) — Starting 2016 Model Year |
