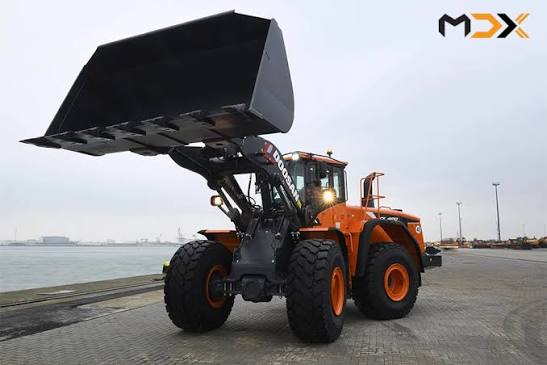

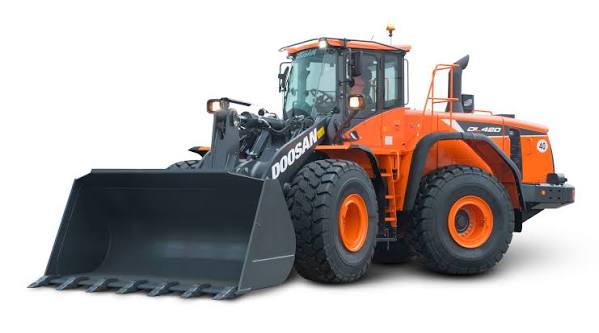

Doosan
DL420-5
- Operating Weight
- 50,784 lb
- Bucket Capacity - heaped
- 5.49 yd³
- Gross Power
- 344.7 hp
- Net Power
- 345.0 hp
1 / 5
Image 1 of 5
Specifications
56 data points
Operating Specifications
| Operating Weight | 50,784 lb |
|---|---|
| Tire Size | 26.5-25 |
| Static Tipping Weight | 40,256 lb |
| Operating Voltage | 28 V |
| Front Axle/Diff Fluid Capacity | 11.0 gal |
| Rear Axle/Diff Fluid Capacity | 11.0 gal |
| Rated Bucket Capacity | 5.49 yd³ |
Engine
| Engine Model | DC13 |
|---|---|
| Displacement | 775 in³ |
| Power Measured @ | 1,800 rpm |
| Gross Power | 344.7 hp |
| Net Power | 345.0 hp |
| Number of Cylinders | 6 |
| Torque Measured @ | 1,400 rpm |
| Engine Make | Scania |
| Make | Scania |
| Stroke | 6 in |
| Bore | 5 in |
| Alternator | 100 A |
| Net Torque | 1,121 lb-ft |
| Starter | 8.0 hp |
| Horsepower -Net | 271.0 hp |
Weights
| Operating Weight | 50,784 lb |
|---|
Hydraulic System
| Raise Time | 6.0 s |
|---|---|
| Lower Time | 3.0 s |
| Dump Time | 1.7 s |
| Relief Valve Pressure | 3,989 psi |
Dimensions
| Ground Clearance | 20 in |
|---|---|
| Wheelbase | 138 in |
| Overall Length | 344 in |
| Width Over Tires | 118 in |
| Reach at Max Lift and Dump | 49 in |
| Hinge Pin - Max Height | 187 in |
| Overall Height | 139 in |
| Digging Depth | 7 in |
Transmission
| Max Speed - Forward | 22.4 mph |
|---|---|
| Max Speed - Reverse | 11.5 mph |
Fluid Capacities
| Fuel Tank | 73.0 gal |
|---|---|
| Hydraulic system | 61.0 gal |
| Engine Oil | 10.0 gal |
| Cooling system | 16.0 gal |
| Transmission | 14.0 gal |
| Diesel exhaust fluid (DEF) tank | 16.0 gal |
Bucket
| Bucket Capacity - heaped | 5.49 yd³ |
|---|---|
| Dump Clearance at Max Raise | 121 in |
| Breakout Force | 47,209 lb |
| Bucket Width | 130 in |
General Specifications
| Operating Weight | 50,783 (23,035) — Starting 2019 Model Year |
|---|---|
| Operating Weight lbs (kg) | 50,783 (23,035) — Starting 2016 Model Year |
| Bucket Capacity | 5.5 (4.2) — Starting 2019 Model Year |
| Bucket Capacity cu. yd. (cu m) | 5.5 (4.2) — Starting 2016 Model Year |
| Engine type | Scania — Starting 2019 Model Year |
| Engine Power | 345 (257) — Starting 2019 Model Year |
| Max Dump Height | 10.1 (3.1) — Starting 2020 Model Year |
| Max Dump Height ft.( m) | 10.1 (3.07) — Starting 2016 Model Year |
| Engine Power HP (KW) | 345 (257) — Starting 2016 Model Year |
