Doosan

DL450

Wheel Loader

Operating Weight
55,834 lb
Bucket Capacity - heaped
5.90 yd³
Net Power
301.0 hp
All wheel loaders

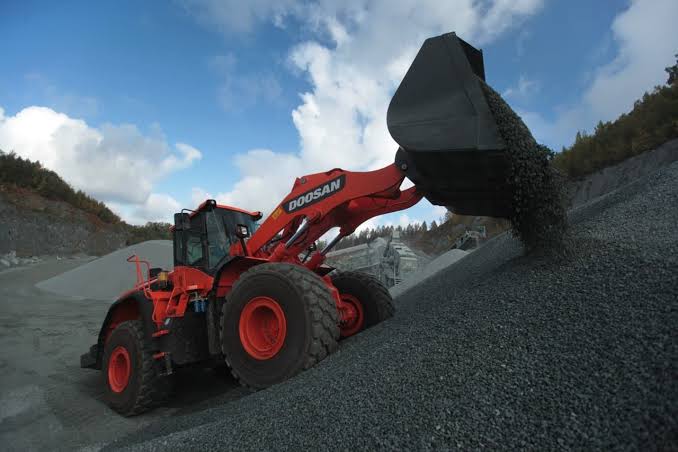

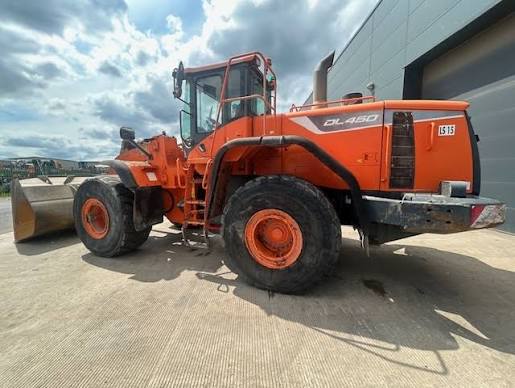

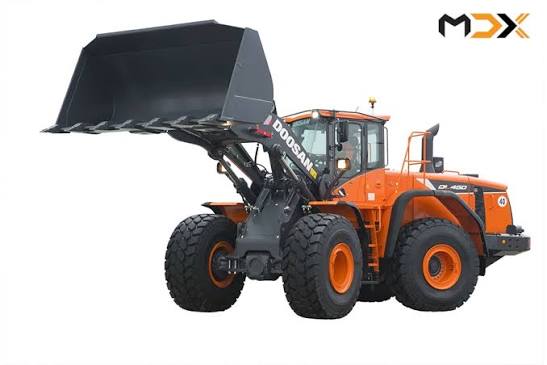

Doosan DL450 Wheel Loader
1 / 5
Image 1 of 5
Image: lectura-specs.com

Specifications

37 data points

Operating Specifications

Operating Specifications specifications
Operating Weight55,834 lb
Fuel Capacity101.8 gal
Hydraulic System Fluid Capacity63.5 gal
Static Tipping Weight38,753 lb
Operating Voltage24 V
Turning Radius278 in
Engine Oil Fluid Capacity9.0 gal
Alternator Supplied Amperage70 A
Front Axle/Diff Fluid Capacity13.5 gal
Rear Axle/Diff Fluid Capacity13.5 gal
Cooling System Fluid Capacity14.6 gal
Transmission Fluid Capacity14.3 gal

Engine

Engine specifications
Engine ModelQSM11
Displacement659 in³
Power Measured @1,900 rpm
Net Power301.0 hp
Number of Cylinders6
AspirationTurbocharged with Intercooler
Torque Measured @1,400 rpm

Hydraulic System

Hydraulic System specifications
Raise Time6.5 s
Lower Time4.1 s
Dump Time1.9 s

Dimensions

Dimensions specifications
Ground Clearance20 in
Height - Top of Cab141 in
Wheelbase141 in
Width Over Tires120 in
Reach at Max Lift and Dump56 in
Length with Bucket on Ground370 in
Hinge Pin - Max Height179 in

Transmission

Transmission specifications
Max Speed - Forward23.7 mph
Max Speed - Reverse11.9 mph
Transmission TypePowershift
Number of Forward Gears4
Number of Reverse Gears3

Bucket

Bucket specifications
Bucket Capacity - heaped5.90 yd³
Dump Clearance at Max Raise125 in
Bucket Width131 in
