Doosan
Tata Hitachi
TWL3036
Wheel Loader
41 specifications
1 / 5

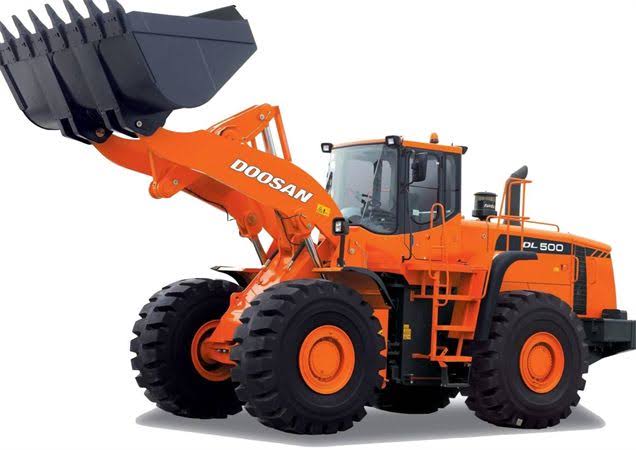

Image 1 of 5
Specifications
43 data points
Operating Specifications
| Fuel Capacity | 125.8 gal |
|---|---|
| Tire Size | 29.5R25 |
| Hydraulic System Fluid Capacity | 62.4 gal |
| Static Tipping Weight | 50,706 lb |
| Operating Voltage | 24 V |
| Turning Radius | 291 in |
| Engine Oil Fluid Capacity | 9.0 gal |
| Rear Axle Oscillation | 20 ° |
| Alternator Supplied Amperage | 70 A |
| Front Axle/Diff Fluid Capacity | 13.3 gal |
| Rear Axle/Diff Fluid Capacity | 13.3 gal |
| Cooling System Fluid Capacity | 15.9 gal |
| Transmission Fluid Capacity | 14.3 gal |
Engine
| Engine Model | QSM11 |
|---|---|
| Displacement | 659 in³ |
| Power Measured @ | 1,900 rpm |
| Gross Power | 360.0 hp |
| Net Power | 335.0 hp |
| Number of Cylinders | 6 |
| Aspiration | turbocharged air to air intercooler |
| Torque Measured @ | 1,400 rpm |
Hydraulic System
| Pump Flow Capacity | 122.6 gal/min |
|---|---|
| Raise Time | 6.0 s |
| Lower Time | 4.3 s |
| Dump Time | 1.8 s |
| Relief Valve Setting | 3,626 psi |
| Pump Type | axial piston |
Dimensions
| Ground Clearance | 20 in |
|---|---|
| Height - Top of Cab | 151 in |
| Wheelbase | 143 in |
| Width Over Tires | 134 in |
| Reach at Max Lift and Dump | 124 in |
| Length with Bucket on Ground | 376 in |
| Hinge Pin - Max Height | 181 in |
Transmission
| Max Speed - Forward | 21.8 mph |
|---|---|
| Max Speed - Reverse | 15.2 mph |
| Transmission Type | full power shift |
| Number of Forward Gears | 4 |
| Number of Reverse Gears | 3 |
Bucket
| Bucket Capacity - heaped | 6.30 yd³ |
|---|---|
| Dump Clearance at Max Raise | 133 in |
| Breakout Force | 61,373 lb |
| Bucket Width | 134 in |
