DoosanZettelmeyer
ZL5001
Wheel Loader
35 specifications

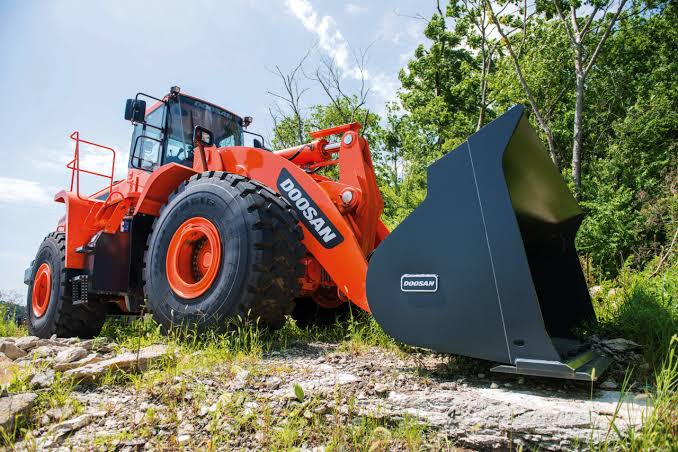

Doosan

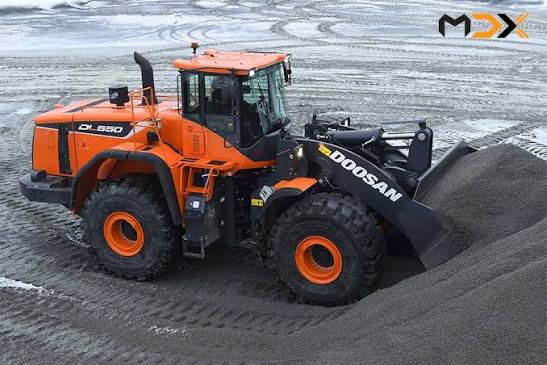

DL550-5
- Operating Weight
- 69,898 lb
- Bucket Capacity - heaped
- 7.49 yd³
- Gross Power
- 380.0 hp
- Net Power
- 380.0 hp
.jpg)
1 / 5
Image 1 of 5
Specifications
56 data points
Operating Specifications
| Operating Weight | 69,898 lb |
|---|---|
| Tire Size | 29.5-25 |
| Static Tipping Weight | 53,176 lb |
| Operating Voltage | 28 V |
| Front Axle/Diff Fluid Capacity | 16.5 gal |
| Rear Axle/Diff Fluid Capacity | 16.9 gal |
| Rated Bucket Capacity | 7.49 yd³ |
Engine
| Engine Model | DC13 |
|---|---|
| Displacement | 775 in³ |
| Power Measured @ | 1,800 rpm |
| Gross Power | 380.0 hp |
| Net Power | 380.0 hp |
| Number of Cylinders | 6 |
| Torque Measured @ | 1,400 rpm |
| Engine Make | Scania |
| Make | Scania |
| Stroke | 6 in |
| Bore | 5 in |
| Alternator | 100 A |
| Net Torque | 1,121 lb-ft |
| Starter | 8.0 hp |
| Horsepower -Net | 271.0 hp |
Weights
| Operating Weight | 69,909 lb |
|---|
Hydraulic System
| Raise Time | 6.4 s |
|---|---|
| Lower Time | 4.2 s |
| Dump Time | 1.4 s |
| Relief Valve Pressure | 3,989 psi |
Dimensions
| Ground Clearance | 19 in |
|---|---|
| Wheelbase | 146 in |
| Overall Length | 381 in |
| Width Over Tires | 176 in |
| Reach at Max Lift and Dump | 50 in |
| Hinge Pin - Max Height | 190 in |
| Overall Height | 150 in |
| Digging Depth | 3 in |
Transmission
| Max Speed - Forward | 22.4 mph |
|---|---|
| Max Speed - Reverse | 16.1 mph |
Fluid Capacities
| Fuel Tank | 117.0 gal |
|---|---|
| Hydraulic system | 65.0 gal |
| Engine Oil | 12.0 gal |
| Cooling system | 16.0 gal |
| Transmission | 14.0 gal |
| Diesel exhaust fluid (DEF) tank | 16.0 gal |
Bucket
| Bucket Capacity - heaped | 7.49 yd³ |
|---|---|
| Dump Clearance at Max Raise | 134 in |
| Breakout Force | 55,303 lb |
| Bucket Width | 134 in |
General Specifications
| Operating Weight | 69,897 (31,705) — Starting 2019 Model Year |
|---|---|
| Operating Weight lbs (kg) | 69,897 (31,705) — Starting 2016 Model Year |
| Bucket Capacity | 7.5 (5.7) — Starting 2019 Model Year |
| Bucket Capacity cu. yd. (cu m) | 7.5 (5.7) — Starting 2016 Model Year |
| Engine type | Scania — Starting 2019 Model Year |
| Engine Power | 380 (283) — Starting 2019 Model Year |
| Max Dump Height | 11.2 (3.4) — Starting 2020 Model Year |
| Max Dump Height ft.( m) | 11.2 (3.41) — Starting 2016 Model Year |
| Engine Power HP (KW) | 380 (283) — Starting 2016 Model Year |
