Doosan

DX180LC

Excavator

Operating Weight
38,933 lb
Max Digging Depth
226 in
Max Digging Depth
241 in
Net Power
118.0 hp
All excavators

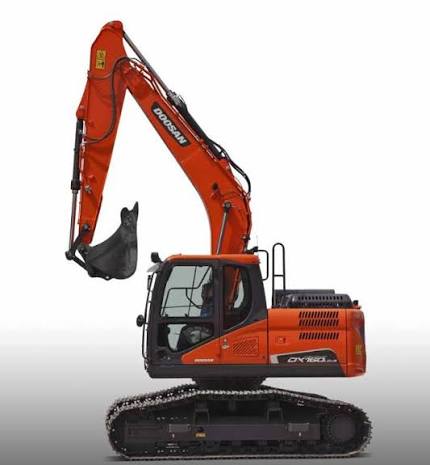

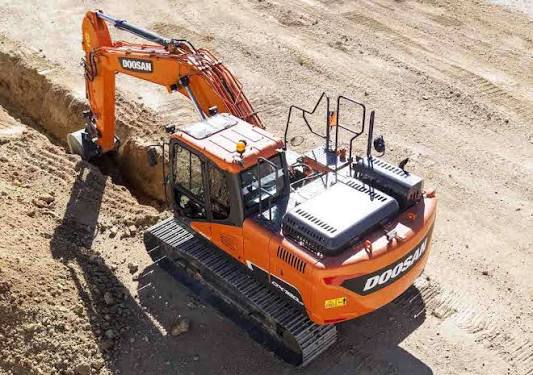

Doosan DX180LC Excavator
1 / 5
Image 1 of 5
Image: wakarusaequipment.com

Specifications

67 data points

Operating Specifications

Operating Specifications specifications
Operating Weight38,933 lb
Fuel Capacity74.0 gal
Hydraulic Pump Flow Capacity80.4 gal/min
Hydraulic System Fluid Capacity49.2 gal
Hydraulic System Relief Valve Pressure4,699 psi
Engine Oil Capacity6.7 gal
Cooling System Fluid Capacity5.3 gal
Operating Voltage24 V
Swing Drive Fluid Capacity1.1 gal
Alternator Supplied Amperage50 A

Engine

Engine specifications
Engine ModelDL06
Displacement359 in³
Power Measured @1,950 rpm
Gross Power122.0 hp
Net Power118.0 hp
Aspirationturbocharged with air to air intercooler
Torque Measured @1,400 rpm
Max Torque333 lb-ft

Dimensions

Dimensions specifications
Ground Clearance18 in
Height - Top of Cab115 in
Length of Track on Ground126 in
Tail Swing Radius97 in
Width to Outside of Tracks98 in
Removal Counterweight Clearance41 in

Undercarriage

Undercarriage specifications
Ground Pressure6 psi
Number of Track Rollers per Side7
Max Travel Speed3.2 mph
Shoe Size24 in
Number of Shoes per Side44
Number of Carrier Rollers per Side2

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth226 in
Max Reach Along Ground339 in
Max Loading Height247 in
Max Vertical Wall Digging Depth183 in
Max Cutting Height353 in
Shipping Length of Unit344 in
Shipping Height of Unit119 in

Bucket

Bucket specifications
Reference Bucket Capacity0.99 yd³
Maximum Bucket Capacity1.10 yd³
Minimum Bucket Capacity0.50 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed11 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth241 in
Max Vertical Wall Digging Depth199 in
Max Cutting Height362 in
Max Loading Height256 in
Max Reach Along Ground354 in
Shipping Length of Unit343 in
Shipping Height of Unit114 in

Boom/Stick Excavator Option 3

Boom/Stick Excavator Option 3 specifications
Max Digging Depth261 in
Max Cutting Height359 in
Max Loading Height256 in
Max Vertical Wall Digging Depth203 in
Max Reach Along Ground369 in
Shipping Length of Unit346 in

Boom/Stick Excavator Option 4

Boom/Stick Excavator Option 4 specifications
Max Digging Depth221 in
Max Cutting Height404 in
Max Reach Along Ground356 in
Max Loading Height293 in
Max Vertical Wall Dig Depth186 in
Shipping Length of Unit349 in

Boom/Stick Excavator Option 5

Boom/Stick Excavator Option 5 specifications
Max Digging Depth233 in
Max Reach Along Ground369 in
Max Cutting Height414 in
Max Loading Height302 in
Max Vertical Wall Dig Depth197 in
Shipping Height of Unit124 in
Shipping Length of Unit349 in
