Doosan

DX225LC

Excavator

Operating Weight
47,399 lb
Max Digging Depth
241 in
Max Digging Depth
261 in
Net Power
148.0 hp
All excavators

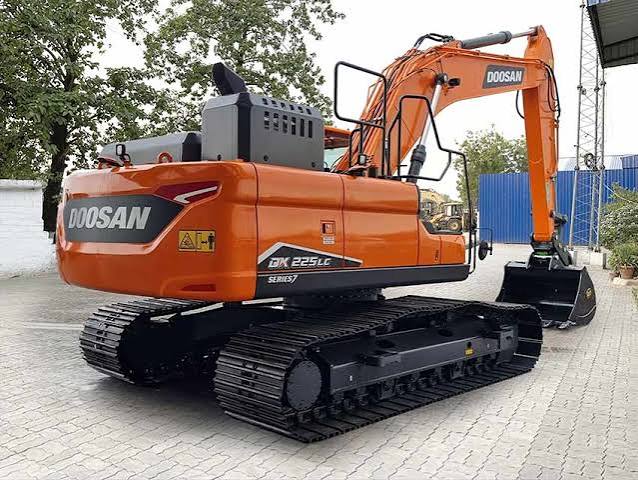

Doosan DX225LC Excavator
1 / 5
Image 1 of 5
Image: lectura-specs.com

Specifications

67 data points

Operating Specifications

Operating Specifications specifications
Operating Weight47,399 lb
Fuel Capacity105.7 gal
Hydraulic Pump Flow Capacity109.2 gal/min
Hydraulic System Fluid Capacity87.2 gal
Hydraulic System Relief Valve Pressure4,699 psi
Engine Oil Capacity7.2 gal
Cooling System Fluid Capacity6.4 gal
Operating Voltage24 V
Swing Drive Fluid Capacity1.4 gal
Alternator Supplied Amperage50 A

Engine

Engine specifications
Engine ModelDL06
Displacement359 in³
Power Measured @1,900 rpm
Gross Power155.0 hp
Net Power148.0 hp
Aspirationturbo charged with air to air intercooler
Torque Measured @1,400 rpm
Max Torque492 lb-ft

Dimensions

Dimensions specifications
Ground Clearance19 in
Height - Top of Cab118 in
Length of Track on Ground144 in
Tail Swing Radius109 in
Width to Outside of Tracks119 in
Removal Counterweight Clearance42 in

Undercarriage

Undercarriage specifications
Ground Pressure6 psi
Number of Track Rollers per Side9
Max Travel Speed3.4 mph
Shoe Size24 in
Number of Shoes per Side49
Number of Carrier Rollers per Side2

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth241 in
Max Reach Along Ground367 in
Max Loading Height270 in
Max Vertical Wall Digging Depth212 in
Max Cutting Height379 in
Shipping Length of Unit120 in
Shipping Height of Unit124 in

Bucket

Bucket specifications
Reference Bucket Capacity1.29 yd³
Maximum Bucket Capacity1.70 yd³
Minimum Bucket Capacity0.71 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed11 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth261 in
Max Vertical Wall Digging Depth223 in
Max Cutting Height384 in
Max Loading Height276 in
Max Reach Along Ground384 in
Shipping Length of Unit374 in
Shipping Height of Unit119 in

Boom/Stick Excavator Option 3

Boom/Stick Excavator Option 3 specifications
Max Digging Depth284 in
Max Cutting Height389 in
Max Loading Height282 in
Max Vertical Wall Digging Depth238 in
Max Reach Along Ground403 in
Shipping Length of Unit374 in

Boom/Stick Excavator Option 4

Boom/Stick Excavator Option 4 specifications
Max Digging Depth211 in
Max Cutting Height349 in
Max Reach Along Ground330 in
Max Loading Height240 in
Max Vertical Wall Dig Depth175 in
Shipping Length of Unit357 in

Boom/Stick Excavator Option 5

Boom/Stick Excavator Option 5 specifications
Max Digging Depth227 in
Max Reach Along Ground346 in
Max Cutting Height357 in
Max Loading Height248 in
Max Vertical Wall Dig Depth193 in
Shipping Height of Unit121 in
Shipping Length of Unit354 in
