Doosan

DX225LC-5

Excavator

Operating Weight
52,086 lb
Max Digging Depth
259 in
Max Digging Depth
283 in
Net Power
162.0 hp
All excavators

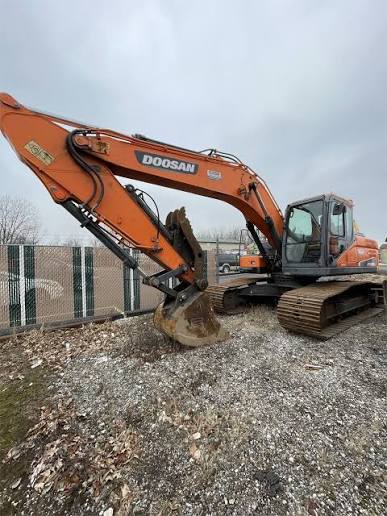

Doosan DX225LC-5 Excavator
1 / 5
Image 1 of 5
Image: hub-4.com

Specifications

63 data points

Operating Specifications

Operating Specifications specifications
Operating Weight52,086 lb
Fuel Capacity105.7 gal
Hydraulic System Fluid Capacity60.8 gal
Hydraulic System Relief Valve Pressure5 psi
Engine Oil Capacity7.1 gal
Cooling System Fluid Capacity10.1 gal
Swing Drive Fluid Capacity1.4 gal
DEF tank capacity9.0 gal
Hydraulic Tank51.5 gal

Engine

Engine specifications
Engine ModelDL06P
Displacement360 in³
Power Measured @1,800 rpm
Gross Power166.0 hp
Net Power162.0 hp
Torque Measured @1,400 rpm
Max Torque557 lb-ft
Engine MakeDoosan
Bore4 in
Stroke5 in
Air cleanerDouble Elements
Starter8.6 hp

Weights

Weights specifications
Counterweight9,480 lb

Hydraulic System

Hydraulic System specifications
Pilotpump-Gear Design7.1 gal/min
Relief Pressure - Boost4,694 psi
Relief Pressure -Normal4,978 psi
Main pump flow standard109.2 gal/min

Dimensions

Dimensions specifications
Height - Top of Cab115 in
Length of Track on Ground182 in
Tail Swing Radius120 in
Counterweight Clearance44 in
Undercarriage Width134 in
Track Shoe Width32 in
Cab width41 in

Undercarriage

Undercarriage specifications
Number of Shoes per Side49
Number of bottom rollers per side8
Number of top rollers per side2

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth259 in
Max Reach Along Ground381 in
Max Loading Height270 in
Max Vertical Wall Digging Depth222 in
Minimum swing radius140 in
Max Digging Reach390 in
Max Digging Height377 in
Min Digging Reach20 in

Bucket

Bucket specifications
Maximum Bucket Capacity0.60 yd³
Minimum Bucket Capacity0.50 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed11 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth283 in
Max Vertical Wall Digging Depth235 in
Max Loading Height276 in
Minimum swing radius142 in
Max Digging Reach409 in
Max. digging height380 in
Min Digging Reach8 in

Electrical System

Electrical System specifications
Alternator—
Battery12V 100AH
Starter24V

Performance

Performance specifications
Maximum Grade70.0 %
Swing - Normal Mode4,694 psi
Swing-Power Mode4,978 psi
Traction Force -Draw bar Pull60,714 lb-ft
Travel-Normal Mode4,694 psi
Travel-Power Mode4,978 psi
