Doosan

DX255LC

Excavator

Operating Weight
54,233 lb
Max Digging Depth
250 in
Max Digging Depth
269 in
Net Power
166.0 hp
All excavators

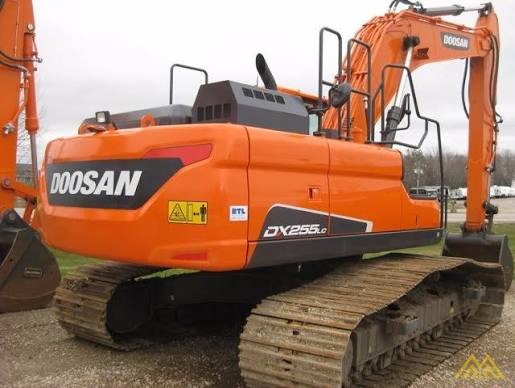

Doosan DX255LC Excavator
1 / 5
Image 1 of 5
Image: lectura-specs.com

Specifications

67 data points

Operating Specifications

Operating Specifications specifications
Operating Weight54,233 lb
Fuel Capacity108.4 gal
Hydraulic Pump Flow Capacity115.8 gal/min
Hydraulic System Fluid Capacity108.4 gal
Hydraulic System Relief Valve Pressure4,685 psi
Engine Oil Capacity7.2 gal
Cooling System Fluid Capacity6.7 gal
Operating Voltage24 V
Swing Drive Fluid Capacity1.4 gal
Alternator Supplied Amperage50 A

Engine

Engine specifications
Engine ModelDL06
Displacement359 in³
Power Measured @1,900 rpm
Gross Power173.0 hp
Net Power166.0 hp
Aspirationturbo charged with air to air intercooler
Torque Measured @1,400 rpm
Max Torque564 lb-ft

Dimensions

Dimensions specifications
Ground Clearance18 in
Height - Top of Cab118 in
Length of Track on Ground151 in
Tail Swing Radius119 in
Width to Outside of Tracks126 in
Removal Counterweight Clearance44 in

Undercarriage

Undercarriage specifications
Ground Pressure7 psi
Number of Track Rollers per Side10
Max Travel Speed3.3 mph
Shoe Size24 in
Number of Shoes per Side51
Number of Carrier Rollers per Side2

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth250 in
Max Reach Along Ground376 in
Max Loading Height263 in
Max Vertical Wall Digging Depth181 in
Max Cutting Height367 in
Shipping Length of Unit398 in
Shipping Height of Unit126 in

Bucket

Bucket specifications
Reference Bucket Capacity1.50 yd³
Maximum Bucket Capacity1.90 yd³
Minimum Bucket Capacity0.71 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed10 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth269 in
Max Vertical Wall Digging Depth206 in
Max Cutting Height379 in
Max Loading Height274 in
Max Reach Along Ground395 in
Shipping Length of Unit396 in
Shipping Height of Unit122 in

Boom/Stick Excavator Option 3

Boom/Stick Excavator Option 3 specifications
Max Digging Depth288 in
Max Cutting Height388 in
Max Loading Height282 in
Max Vertical Wall Digging Depth224 in
Max Reach Along Ground414 in
Shipping Length of Unit397 in

Boom/Stick Excavator Option 4

Boom/Stick Excavator Option 4 specifications
Max Digging Depth212 in
Max Cutting Height342 in
Max Reach Along Ground335 in
Max Loading Height236 in
Max Vertical Wall Dig Depth158 in
Shipping Length of Unit377 in

Boom/Stick Excavator Option 5

Boom/Stick Excavator Option 5 specifications
Max Digging Depth231 in
Max Reach Along Ground349 in
Max Cutting Height340 in
Max Loading Height238 in
Max Vertical Wall Dig Depth159 in
Shipping Height of Unit126 in
Shipping Length of Unit373 in
