Sumitomo

SH135XU-3B

Excavator

Operating Weight
32,629 lb
Max Digging Depth
192 in
Net Power
95.1 hp
All excavators

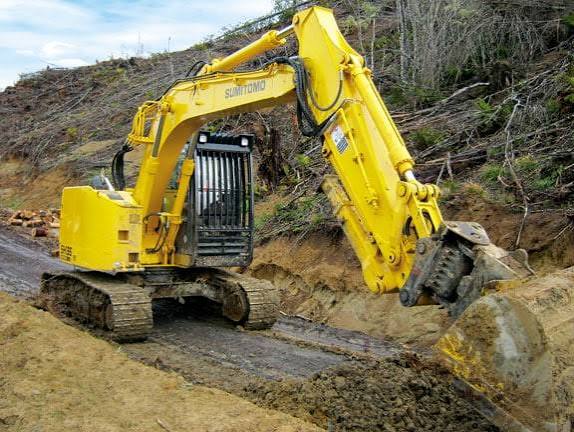

Sumitomo SH135XU-3B Excavator
1 / 5
Image 1 of 5
Image: sumitomokenki.com

Specifications

20 data points

Operating Specifications

Operating Specifications specifications
Operating Weight32,629 lb
Hydraulic Pump Flow Capacity61.9 gal/min
Hydraulic System Relief Valve Pressure4,975 psi

Engine

Engine specifications
Engine ModelAJ 4IJJIX
Displacement177 in³
Power Measured @2,000 rpm
Net Power95.1 hp

Dimensions

Dimensions specifications
Ground Clearance18 in
Length of Track on Ground110 in
Tail Swing Radius59 in
Width to Outside of Tracks98 in

Undercarriage

Undercarriage specifications
Max Travel Speed3.2 mph
Shoe Size20 in

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth192 in
Max Reach Along Ground284 in
Max Loading Height238 in
Max Vertical Wall Digging Depth142 in
Shipping Length of Unit292 in
Shipping Height of Unit111 in

Bucket

Bucket specifications
Reference Bucket Capacity0.60 yd³
