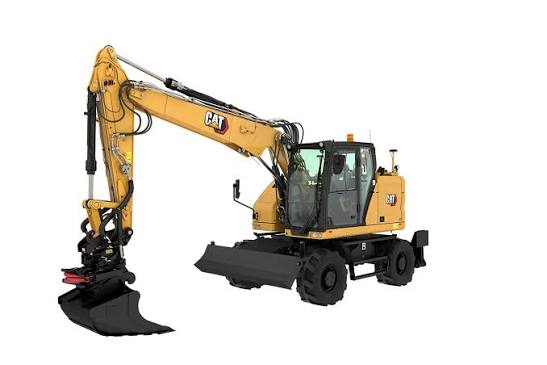

M315
Excavator
7 specifications
.jpg)
1 / 5
Image 1 of 5
Specifications
45 data points
Operating Specifications
| Operating Weight | 57,752 lb |
|---|---|
| Fuel Capacity | 111.0 gal |
| Hydraulic System Fluid Capacity | 74.0 gal |
| Engine Oil Capacity | 7.2 gal |
| Cooling System Fluid Capacity | 7.4 gal |
| Operating Voltage | 24 V |
| Swing Drive Fluid Capacity | 1.9 gal |
| DEF tank capacity | 8.4 gal |
| Hydraulic Tank | 63.5 gal |
| Travel speed, high range | 3.5 mph |
| Travel speed, low range | 2.0 mph |
Engine
| Engine Model | DL06P |
|---|---|
| Displacement | 6 in³ |
| Power Measured @ | 1,900 rpm |
| Gross Power | 189.0 hp |
| Net Power | 181.0 hp |
| Torque Measured @ | 1,400 rpm |
| Max Torque | 593 lb-ft |
| Engine Make | Doosan |
| Alternator | 85 A |
Hydraulic System
| Pilotpump-Gear Design | 7.6 gal/min |
|---|---|
| Relief Pressure - Boost | 5,263 psi |
| Relief Pressure -Normal | 4,978 psi |
| Main Pump | 115.8 gal/min |
Dimensions
| Tail Swing Radius | 120 in |
|---|---|
| Removal Counterweight Clearance | 44 in |
| Track Width | 102,362 in |
| Undercarriage Width | 138 in |
| Track Shoe Width | 36 in |
| Track length | 182 in |
| Cab width | 39,765 in |
Undercarriage
| Number of Shoes per Side | 51 |
|---|---|
| Drawbar Pull | 62,832 lb |
| Number of Upper Rollers | 2 |
| Number of Lower Rollers | 10 |
Boom/Stick Excavator Option 1
| Max Digging Depth | 288 in |
|---|---|
| Max Reach Along Ground | 411 in |
| Max Loading Height | 83 in |
| Max Vertical Wall Digging Depth | 219 in |
| Shipping Length of Unit | 398 in |
| Shipping Height of Unit | 133 in |
| Minimum swing radius | 148 in |
| Max Digging Reach | 418 in |
| Max Digging Height | 388 in |
Swing Mechanism
| Swing Speed | 10 rpm |
|---|

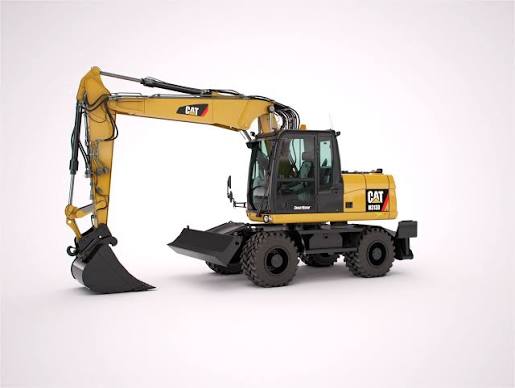

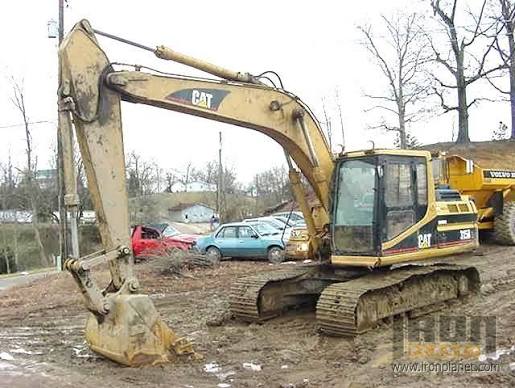

Comparable machines
