Caterpillar

211B LC

Excavator

Operating Weight
34,723 lb
Max Digging Depth
189 in
Max Digging Depth
215 in
Net Power
105.0 hp
All excavators

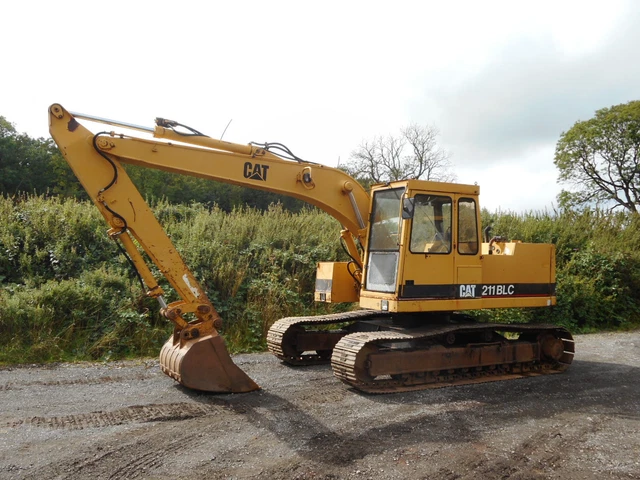

Caterpillar 211B LC Excavator
1 / 5
Image 1 of 5
Image: picclick.co.uk

Specifications

43 data points

Operating Specifications

Operating Specifications specifications
Operating Weight34,723 lb
Fuel Capacity71.4 gal
Hydraulic Pump Flow Capacity60.8 gal/min
Hydraulic System Fluid Capacity54.2 gal
Hydraulic System Relief Valve Pressure4,640 psi

Engine

Engine specifications
Engine Model3114
Displacement269 in³
Net Power105.0 hp

Dimensions

Dimensions specifications
Ground Clearance17 in
Height - Top of Cab118 in
Tail Swing Radius85 in
Width to Outside of Tracks108 in
Removal Counterweight Clearance43 in

Undercarriage

Undercarriage specifications
Ground Pressure5 psi
Track Gauge89 in
Max Travel Speed2.8 mph
Shoe Size24 in
Drawbar Pull31,473 lb

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth189 in
Max Reach Along Ground315 in
Max Loading Height223 in
Max Vertical Wall Digging Depth144 in
Max Cutting Height313 in

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth215 in
Max Vertical Wall Digging Depth162 in
Max Cutting Height324 in
Max Loading Height234 in
Max Reach Along Ground340 in

Boom/Stick Excavator Option 3

Boom/Stick Excavator Option 3 specifications
Max Digging Depth234 in
Max Cutting Height323 in
Max Loading Height235 in
Max Vertical Wall Digging Depth163 in
Max Reach Along Ground355 in

Boom/Stick Excavator Option 4

Boom/Stick Excavator Option 4 specifications
Max Digging Depth254 in
Max Cutting Height332 in
Max Reach Along Ground374 in
Max Loading Height245 in
Max Vertical Wall Dig Depth1,807 in

Boom/Stick Excavator Option 5

Boom/Stick Excavator Option 5 specifications
Max Digging Depth282 in
Max Reach Along Ground402 in
Max Cutting Height346 in
Max Loading Height258 in
Max Vertical Wall Dig Depth205 in
