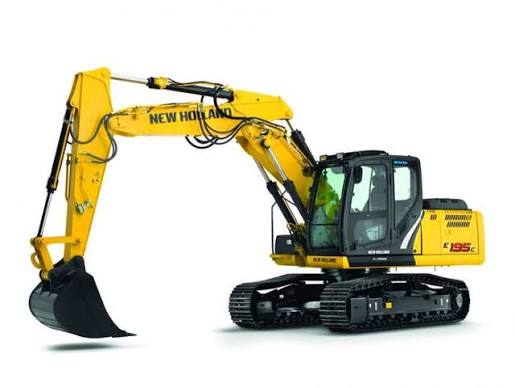

New Holland
E195EL
Excavator
53 specifications

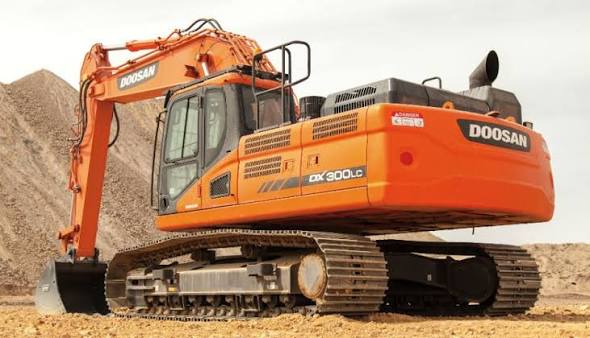

Doosan
DX300LC-5
- Operating Weight
- 68,764 lb
- Max Digging Depth
- 288 in
- Max Digging Depth
- 313 in
- Net Power
- 266.0 hp
.jpg)
1 / 5
Image 1 of 5
Specifications
56 data points
Operating Specifications
| Operating Weight | 68,764 lb |
|---|---|
| Fuel Capacity | 132.1 gal |
| Hydraulic System Fluid Capacity | 81.9 gal |
| Hydraulic System Relief Valve Pressure | 7 psi |
| Engine Oil Capacity | 9.6 gal |
| Cooling System Fluid Capacity | 13.0 gal |
| Swing Drive Fluid Capacity | 1.9 gal |
| DEF tank capacity | 18.5 gal |
| Hydraulic Tank | 74.0 gal |
Engine
| Engine Model | DC09 |
|---|---|
| Displacement | 568 in³ |
| Power Measured @ | 2,000 rpm |
| Gross Power | 271.0 hp |
| Net Power | 266.0 hp |
| Torque Measured @ | 1,400 rpm |
| Max Torque | 693 lb-ft |
| Engine Make | Scania |
| Stroke | 6 in |
| Bore | 5 in |
| Air cleaner | Double Elements |
| Starter | 8.0 hp |
Weights
| Counterweight | 11,684 lb |
|---|
Hydraulic System
| Pilotpump-Gear Design | 7.1 gal/min |
|---|---|
| Relief Pressure - Boost | 4,978 psi |
| Relief Pressure -Normal | 5,263 psi |
Dimensions
| Tail Swing Radius | 127 in |
|---|---|
| Counterweight Clearance | 46 in |
| Undercarriage Width | 118 in |
| Track Shoe Width | 32 in |
| Cab width | 41 in |
Undercarriage
| Number of Shoes per Side | 48 |
|---|---|
| Number of bottom rollers per side | 9 |
| Number of top rollers per side | 2 |
Boom/Stick Excavator Option 1
| Max Digging Depth | 288 in |
|---|---|
| Max Reach Along Ground | 414 in |
| Max Loading Height | 287 in |
| Minimum swing radius | 159 in |
| Max Digging Height | 407 in |
| Min Digging Reach | 25 in |
Bucket
| Maximum Bucket Capacity | 0.60 yd³ |
|---|---|
| Minimum Bucket Capacity | 0.50 yd³ |
Swing Mechanism
| Swing Speed | 10 rpm |
|---|
Boom/Stick Excavator Option 2
| Max Digging Depth | 313 in |
|---|---|
| Max Loading Height | 292 in |
| Minimum swing radius | 160 in |
| Max. digging height | 410 in |
| Min Digging Reach | 11 in |
Electrical System
| Alternator | — |
|---|---|
| Battery | 12V 100AH 1300 CCA |
| Starter | 24V |
Performance
| Maximum Grade | 70.0 % |
|---|---|
| Swing - Normal Mode | 4,978 psi |
| Swing-Power Mode | 5,263 psi |
| Traction Force -Draw bar Pull | 77,161 lb-ft |
| Travel-Normal Mode | 4,978 psi |
| Travel-Power Mode | 5,263 psi |
