John Deere
Sumitomo
SH100-2
Excavator
54 specifications
1 / 5

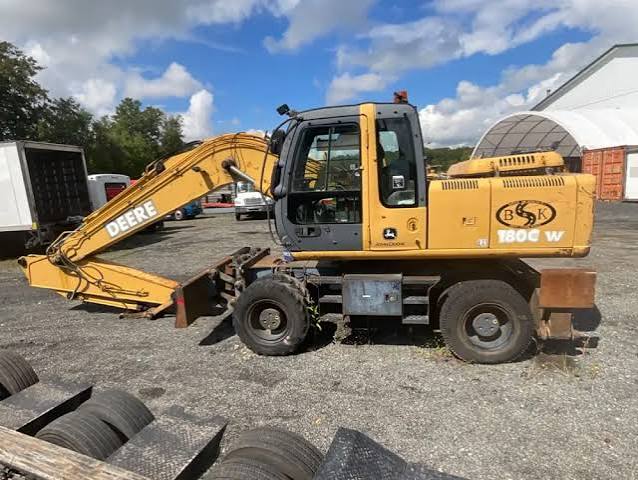

Image 1 of 5
Specifications
50 data points
Operating Specifications
| Operating Weight | 41,447 lb |
|---|---|
| Fuel Capacity | 74.0 gal |
| Hydraulic Pump Flow Capacity | 104.0 gal/min |
| Hydraulic System Fluid Capacity | 71.4 gal |
| Hydraulic System Relief Valve Pressure | 4,980 psi |
| Engine Oil Capacity | 4.2 gal |
| Cooling System Fluid Capacity | 5.1 gal |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 50 A |
| Hydraulic Pump Type | Variable Axial-Piston |
| Oscillating Axle Angle | 12 ° |
| Front Diff Fluid Capacity | 2.3 gal |
| Rear Diff Fluid Capacity | 3.0 gal |
Engine
| Engine Model | 4BG1XABFA |
|---|---|
| Displacement | 264 in³ |
| Power Measured @ | 2,200 rpm |
| Net Power | 121.0 hp |
| Number of Cylinders | 4 |
| Aspiration | turbocharged |
| Torque Measured @ | 1,800 rpm |
| Net Torque | 330 lb-ft |
Dimensions
| Ground Clearance | 15 in |
|---|---|
| Height - Top of Cab | 122 in |
| Wheelbase | 104 in |
| Overall Width | 8 in |
| Tail Swing Radius | 97 in |
| Digging Depth | 228 in |
| Digging Reach | 372 in |
| Upper Structure Clearance | 50 in |
| Overall Width - Outriggers Down | 146 in |
Transmission
| Max Travel Speed | 18.6 mph |
|---|---|
| Transmission Type | Hydrostatic |
| Number of Forward Gears | 2 |
| Number of Reverse Gears | 2 |
Swing Mechanism
| Swing Speed | 13 rpm |
|---|---|
| Swing Torque | 29,800 lb-ft |
Boom/Stick Mobile Excavator Option 1
| Max Digging Depth | 228 in |
|---|---|
| Max Cutting Height | 366 in |
| Max Reach Along Ground | 369 in |
| Max Loading Height | 256 in |
| Shipping Length of Unit | 370 in |
| Shipping Height of Unit | 139 in |
| Max Vertical Wall Dig Depth | 205 in |
Boom/Stick Mobile Excavator Option 2
| Max Digging Depth | 231 in |
|---|---|
| Max Cutting Height | 365 in |
| Max Reach Along Ground | 356 in |
| Max Loading Height | 253 in |
| Shipping Height of Unit | 139 in |
| Shipping Length of Unit | 364 in |
| Max Vertical Wall Dig Depth | 198 in |
