E70B
Excavator
45 specifications
1 / 5

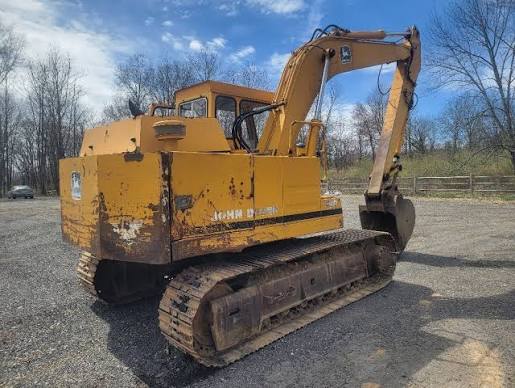

Image 1 of 5
Specifications
18 data points
Operating Specifications
| Operating Weight | 25,360 lb |
|---|---|
| Fuel Capacity | 66.0 gal |
| Hydraulic Pump Flow Capacity | 31.7 gal/min |
| Hydraulic System Fluid Capacity | 42.2 gal |
| Hydraulic System Relief Valve Pressure | 2,550 psi |
| Engine Oil Capacity | 3.8 gal |
| Cooling System Fluid Capacity | 6.2 gal |
| Operating Voltage | 24 V |
| Swing Drive Fluid Capacity | 0.8 gal |
| Alternator Supplied Amperage | 42 A |
Engine
| Engine Model | 300 Series |
|---|---|
| Displacement | 239 in³ |
| Power Measured @ | 2,200 rpm |
| Net Power | 75.0 hp |
| Aspiration | Turbocharged |
| Torque Measured @ | 1,400 rpm |
| Max Torque | 212 lb-ft |
Dimensions
| Width to Outside of Tracks | 107 in |
|---|
