Caterpillar
E70B
- Operating Weight
- 15,256 lb
- Max Digging Depth
- 150 in
- Max Digging Depth
- 162 in
- Net Power
- 54.0 hp
1 / 5

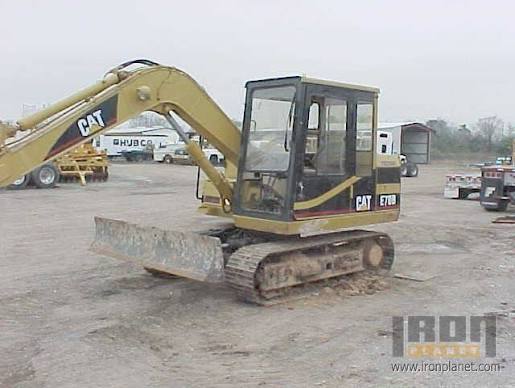

Image 1 of 5
Specifications
45 data points
Operating Specifications
| Operating Weight | 15,256 lb |
|---|---|
| Fuel Capacity | 29.1 gal |
| Hydraulic Pump Flow Capacity | 35.4 gal/min |
| Hydraulic System Fluid Capacity | 27.8 gal |
| Hydraulic System Relief Valve Pressure | 4,551 psi |
| Engine Oil Capacity | 2.4 gal |
| Cooling System Fluid Capacity | 4.3 gal |
| Operating Voltage | 12 V |
| Swing Drive Fluid Capacity | 1.1 gal |
| Alternator Supplied Amperage | 50 A |
Engine
| Engine Model | 4D32 |
|---|---|
| Displacement | 218 in³ |
| Power Measured @ | 1,800 rpm |
| Net Power | 54.0 hp |
Dimensions
| Ground Clearance | 12 in |
|---|---|
| Height - Top of Cab | 102 in |
| Tail Swing Radius | 70 in |
| Width to Outside of Tracks | 90 in |
| Removal Counterweight Clearance | 31 in |
Undercarriage
| Ground Pressure | 5 psi |
|---|---|
| Track Gauge | 70 in |
| Number of Track Rollers per Side | 5 |
| Max Travel Speed | 2.6 mph |
| Shoe Size | 18 in |
| Number of Shoes per Side | 42 |
| Drawbar Pull | 10,141 lb |
Boom/Stick Excavator Option 1
| Max Digging Depth | 150 in |
|---|---|
| Max Reach Along Ground | 234 in |
| Max Loading Height | 176 in |
| Max Vertical Wall Digging Depth | 121 in |
| Max Cutting Height | 257 in |
Bucket
| Reference Bucket Capacity | 0.41 yd³ |
|---|---|
| Maximum Bucket Capacity | 0.50 yd³ |
| Minimum Bucket Capacity | 0.20 yd³ |
Swing Mechanism
| Swing Speed | 14 rpm |
|---|
Boom/Stick Excavator Option 2
| Max Digging Depth | 162 in |
|---|---|
| Max Vertical Wall Digging Depth | 139 in |
| Max Cutting Height | 265 in |
| Max Loading Height | 183 in |
| Max Reach Along Ground | 246 in |
Boom/Stick Excavator Option 3
| Max Digging Depth | 181 in |
|---|---|
| Max Cutting Height | 277 in |
| Max Loading Height | 196 in |
| Max Vertical Wall Digging Depth | 157 in |
| Max Reach Along Ground | 265 in |
