Hitachi

ZX70-3

Excavator

Operating Weight
15,432 lb
Max Digging Depth
165 in
Net Power
54.4 hp
All excavators

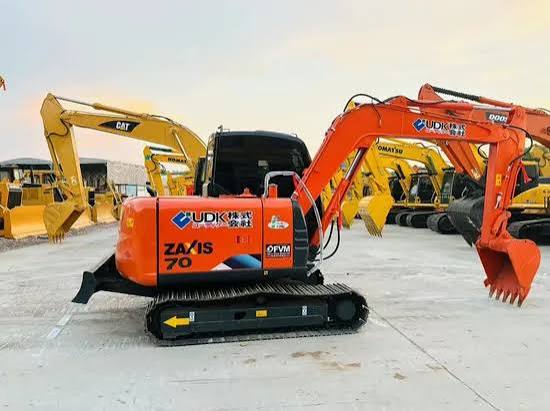

Hitachi ZX70-3 Excavator
1 / 5
Image 1 of 5
Image: hitachicm.com

Specifications

20 data points

Operating Specifications

Operating Specifications specifications
Operating Weight15,432 lb
Hydraulic Pump Flow Capacity38.1 gal/min
Hydraulic System Relief Valve Pressure3,844 psi

Engine

Engine specifications
Engine ModelAU-4LE2X
Displacement134 in³
Power Measured @2,000 rpm
Net Power54.4 hp
Number of Cylinders4

Dimensions

Dimensions specifications
Ground Clearance15 in
Tail Swing Radius70 in
Width to Outside of Tracks93 in

Undercarriage

Undercarriage specifications
Max Travel Speed3.3 mph
Shoe Size18 in

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth165 in
Max Reach Along Ground244 in
Max Loading Height200 in
Max Vertical Wall Digging Depth148 in
Shipping Length of Unit240 in
Shipping Height of Unit103 in

Bucket

Bucket specifications
Reference Bucket Capacity0.41 yd³
