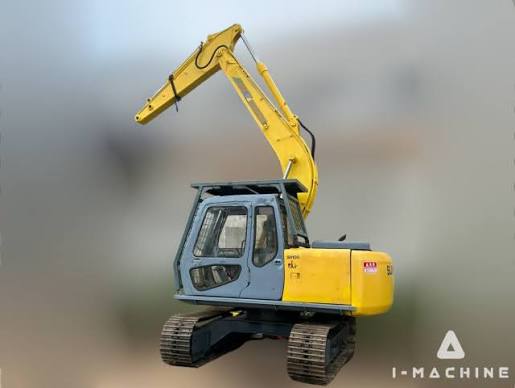

Sumitomo
SH100-2
- Operating Weight
- 25,309 lb
- Max Digging Depth
- 190 in
- Max Digging Depth
- 200 in
- Net Power
- 80.5 hp
1 / 5
Image 1 of 5
Specifications
54 data points
Operating Specifications
| Operating Weight | 25,309 lb |
|---|---|
| Fuel Capacity | 63.5 gal |
| Hydraulic Pump Flow Capacity | 58.7 gal/min |
| Hydraulic System Fluid Capacity | 31.8 gal |
| Engine Oil Capacity | 4.1 gal |
| Cooling System Fluid Capacity | 5.1 gal |
| Operating Voltage | 24 V |
| Swing Drive Fluid Capacity | 0.6 gal |
| Alternator Supplied Amperage | 25 A |
Engine
| Engine Model | A-4BG1T |
|---|---|
| Displacement | 264 in³ |
| Power Measured @ | 2,000 rpm |
| Net Power | 80.5 hp |
| Aspiration | Turbocharged |
| Torque Measured @ | 1,600 rpm |
| Max Torque | 217 lb-ft |
Dimensions
| Ground Clearance | 18 in |
|---|---|
| Height - Top of Cab | 107 in |
| Length of Track on Ground | 103 in |
| Tail Swing Radius | 81 in |
| Width to Outside of Tracks | 98 in |
| Removal Counterweight Clearance | 36 in |
Undercarriage
| Ground Pressure | 6 psi |
|---|---|
| Track Gauge | 79 in |
| Number of Track Rollers per Side | 6 |
| Max Travel Speed | 3.5 mph |
| Shoe Size | 20 in |
| Number of Shoes per Side | 42 |
| Number of Carrier Rollers per Side | 1 |
Boom/Stick Excavator Option 1
| Max Digging Depth | 190 in |
|---|---|
| Max Reach Along Ground | 298 in |
| Max Loading Height | 240 in |
| Max Vertical Wall Digging Depth | 167 in |
| Max Cutting Height | 335 in |
| Shipping Length of Unit | 287 in |
| Shipping Height of Unit | 107 in |
Bucket
| Reference Bucket Capacity | 0.60 yd³ |
|---|---|
| Maximum Bucket Capacity | 0.80 yd³ |
| Minimum Bucket Capacity | 0.41 yd³ |
Swing Mechanism
| Swing Speed | 14 rpm |
|---|
Boom/Stick Excavator Option 2
| Max Digging Depth | 200 in |
|---|---|
| Max Vertical Wall Digging Depth | 178 in |
| Max Cutting Height | 343 in |
| Max Loading Height | 250 in |
| Max Reach Along Ground | 308 in |
| Shipping Length of Unit | 287 in |
| Shipping Height of Unit | 107 in |
Boom/Stick Excavator Option 3
| Max Digging Depth | 223 in |
|---|---|
| Max Cutting Height | 353 in |
| Max Loading Height | 259 in |
| Max Vertical Wall Digging Depth | 193 in |
| Max Reach Along Ground | 326 in |
| Shipping Length of Unit | 287 in |
| Shipping Height of Unit | 107 in |
