Komatsu

PC120

Excavator

Operating Weight
25,350 lb
Max Digging Depth
198 in
Max Digging Depth
234 in
Net Power
90.0 hp
All excavators

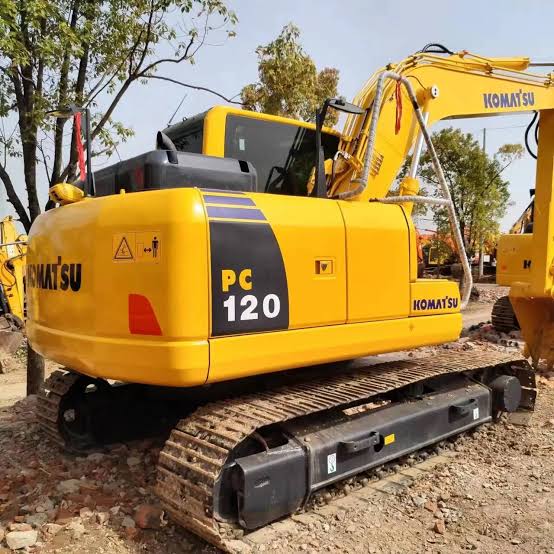

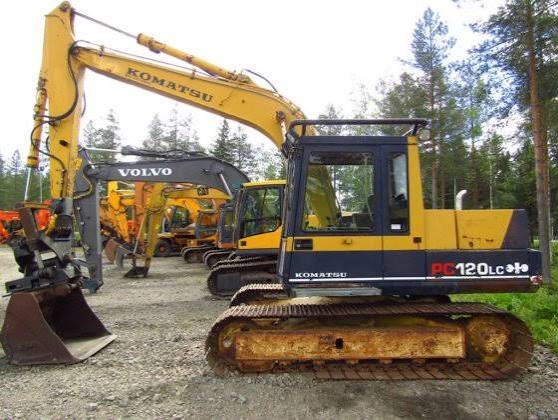

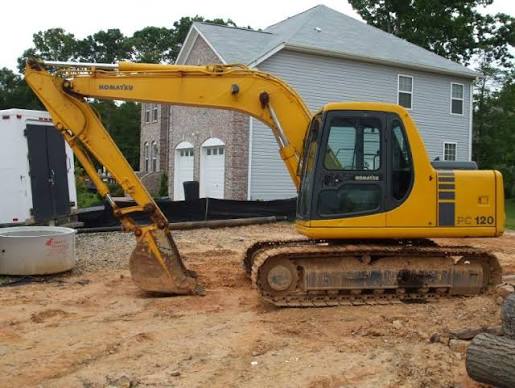

Komatsu PC120 Excavator
1 / 5
Image 1 of 5
Image: lectura-specs.com

Specifications

32 data points

Operating Specifications

Operating Specifications specifications
Operating Weight25,350 lb
Fuel Capacity60.8 gal
Hydraulic Pump Flow Capacity85.4 gal/min
Hydraulic System Fluid Capacity38.4 gal
Hydraulic System Relief Valve Pressure2,500 psi

Engine

Engine specifications
Engine ModelS4D105-5
Displacement264 in³
Net Power90.0 hp
Aspirationturbocharged

Dimensions

Dimensions specifications
Ground Clearance17 in
Height - Top of Cab106 in
Length of Track on Ground102 in
Tail Swing Radius88 in
Width to Outside of Tracks96 in
Removal Counterweight Clearance36 in

Undercarriage

Undercarriage specifications
Ground Pressure6 psi
Track Gauge77 in
Max Travel Speed2.3 mph
Shoe Size19 in

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth198 in
Max Reach Along Ground298 in
Max Loading Height206 in
Max Vertical Wall Digging Depth166 in
Max Cutting Height298 in
Shipping Length of Unit295 in
Shipping Height of Unit106 in

Swing Mechanism

Swing Mechanism specifications
Swing Speed12 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth234 in
Max Vertical Wall Digging Depth185 in
Max Cutting Height304 in
Max Loading Height220 in
Max Reach Along Ground329 in
