Tata Hitachi

EX110

Excavator

Operating Weight
25,353 lb
Max Digging Depth
186 in
Net Power
80.0 hp
All excavators

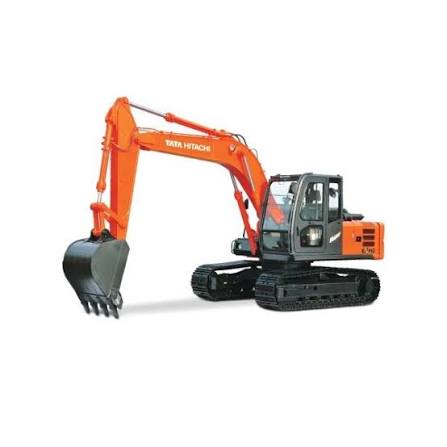

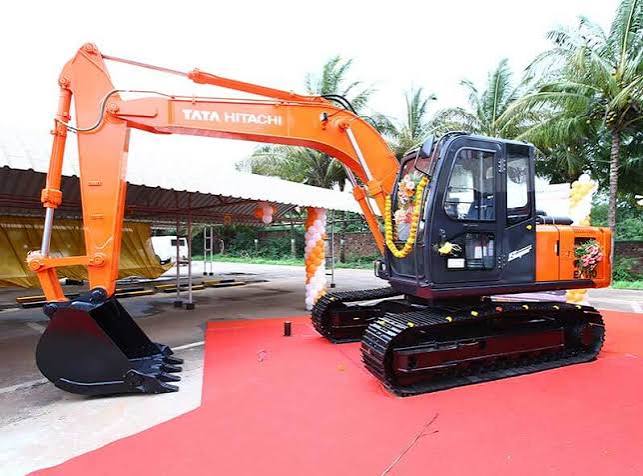

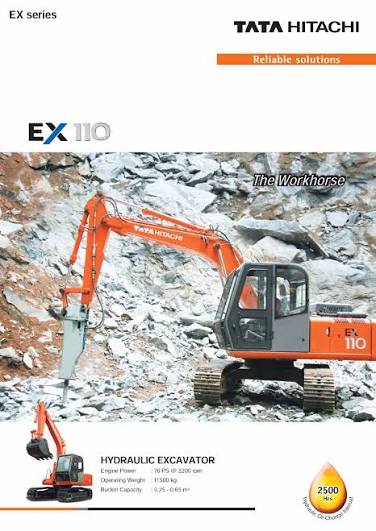

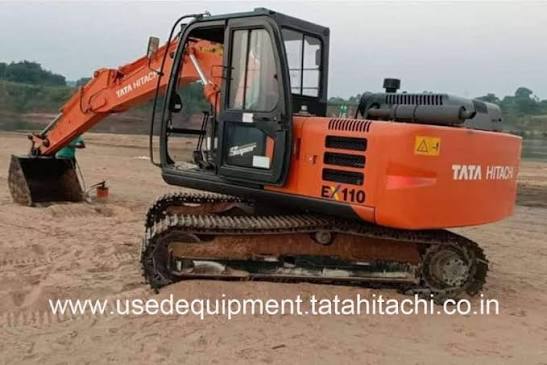

Tata Hitachi EX110 Excavator
1 / 5
Image 1 of 5
Image: nbmcw.com

Specifications

38 data points

Operating Specifications

Operating Specifications specifications
Operating Weight25,353 lb
Fuel Capacity66.1 gal
Hydraulic Pump Flow Capacity60.8 gal/min
Hydraulic System Fluid Capacity33.3 gal
Hydraulic System Relief Valve Pressure5,049 psi
Engine Oil Capacity3.7 gal
Cooling System Fluid Capacity3.0 gal
Operating Voltage24 V
Swing Drive Fluid Capacity0.9 gal

Engine

Engine specifications
Engine ModelTata 697NA
Power Measured @2,300 rpm
Net Power80.0 hp
Torque Measured @1,600 rpm
Max Torque213 lb-ft

Dimensions

Dimensions specifications
Ground Clearance18 in
Height - Top of Cab107 in
Length of Track on Ground103 in
Tail Swing Radius84 in
Width to Outside of Tracks98 in
Removal Counterweight Clearance41 in

Undercarriage

Undercarriage specifications
Ground Pressure6 psi
Track Gauge79 in
Number of Track Rollers per Side6
Max Travel Speed2.7 mph
Shoe Size20 in
Number of Shoes per Side41
Number of Carrier Rollers per Side1

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth186 in
Max Reach Along Ground285 in
Max Loading Height209 in
Max Vertical Wall Digging Depth159 in
Max Cutting Height301 in
Shipping Length of Unit287 in
Shipping Height of Unit107 in

Bucket

Bucket specifications
Reference Bucket Capacity0.60 yd³
Maximum Bucket Capacity0.90 yd³
Minimum Bucket Capacity0.71 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed12 rpm
